Pro Series Telescopic Dump Trailer

Bed Width: 7
Bed Length: 14-16
GVWR: 15,400-22,000 lbs
GAWR: 7,000-10,000 lbs/axle

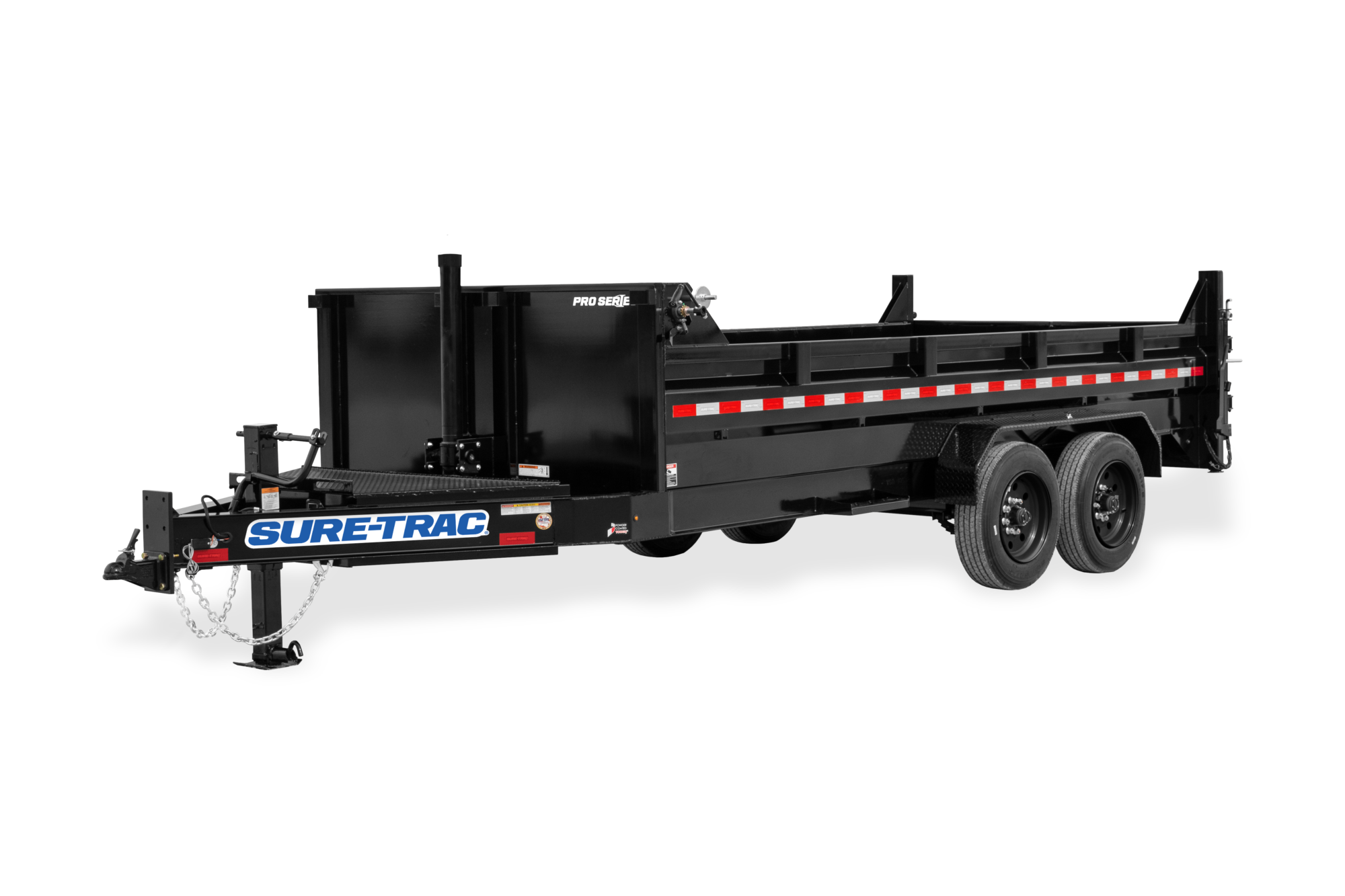

Pro Series Telescopic Dump | Front view, tilted, with reflective tape, up position

24″ Rigid Side Walls

Not only give the trailer a sleek and stylish look, but won’t bend or flex under heavy loads.

3″ x 2″ Tube Top Rail

Additional strength and rigidity to the side walls, as well as another layer of protection for accidental impacts when loading debris and materials.

HD 2-Speed 12K Drop Leg Jack

Speeds up the retraction of the jacks saving you time and energy.

7-Gauge Floor

Thicker than the industry average 10-gauge floor, providing additional strength to handle heavier debris and equipment.

Pro Series Telescopic Dump Trailer

The Sure-TracĀ® Pro SeriesĀ® Telescopic Dump Trailer is engineered to handle the toughest jobs with ease, making it the ideal solution for contractors and professionals who demand durability and efficiency. Designed to work as hard as you do, this trailer comes equipped with a range of features that streamline your day-to-day operations, saving you both time and effort on the job site.

One of the standout features is the telescopic front hoist, which provides a more direct lifting force than traditional hydraulic systems. This allows for a smoother and more controlled dumping action, making it easier to unload materials, especially heavier loads. The telescopic hoist also reduces the stress on the frame and offers a longer-lasting, more durable performance.

Key Benefits

HD I-Beam Frame and Tongue

Provides exceptional structural integrity, allowing the trailer to withstand heavy loads and hard conditions.

24″ Rigid Side Walls

Not only give the trailer a sleek and stylish look, but won’t bend or flex under heavy loads.

3″ x 2″ Tube Top Rail

Additional strength and rigidity to the side walls, as well as another layer of protection for accidental impacts when loading debris and materials.

HD 2-Speed 12K Drop Leg Jack

Speeds up the retraction of the jacks saving you time and energy.

7-Gauge Floor

Thicker than the industry average 10-gauge floor, providing additional strength to handle heavier debris and equipment.

Additional Wall Heights Available

You can also order this trailer with 3′ and 4′ sides to fit your needs.

Explore This Trailer

Pro Series Telescopic Dump | Front view, tilted, with reflective tape, up position

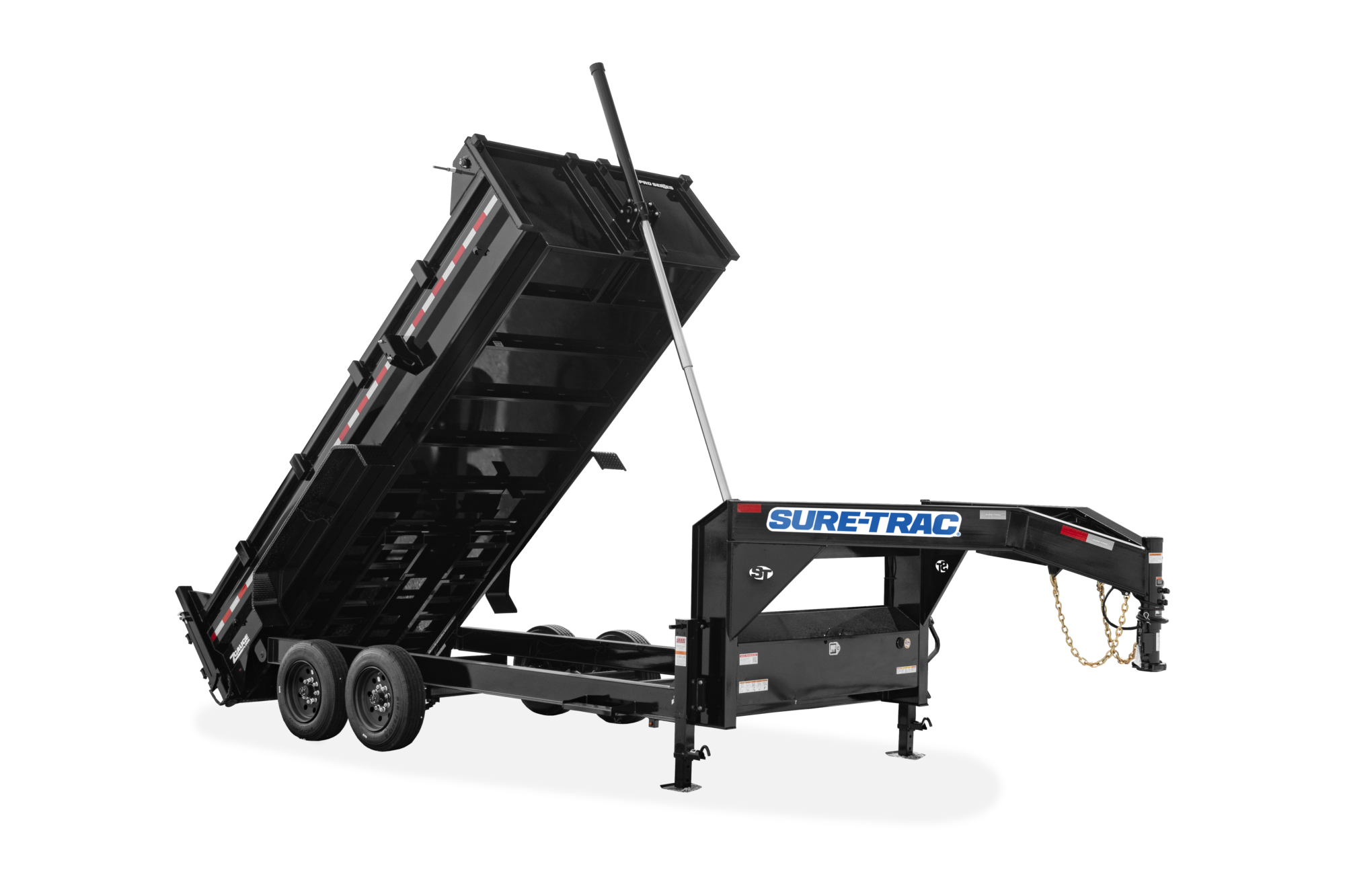

Trailers | Featured ST_PROSeriesDump_GNFrontUp
Pro Series Telescopic Dump | Front view, tilted, with reflective tape, down position

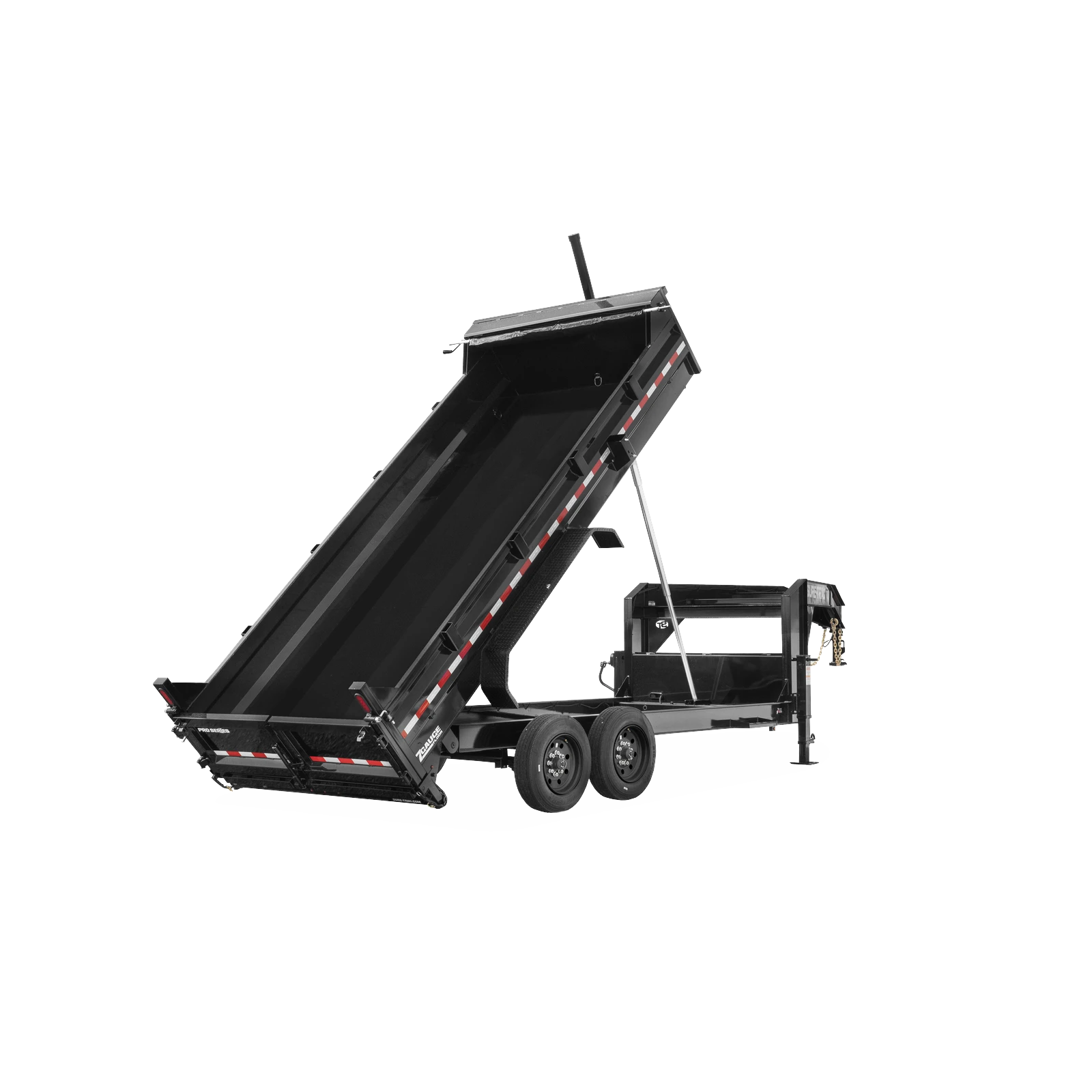

Black dump trailer with bed raised for unloading, showing dual rear wheels and hydraulic lift system

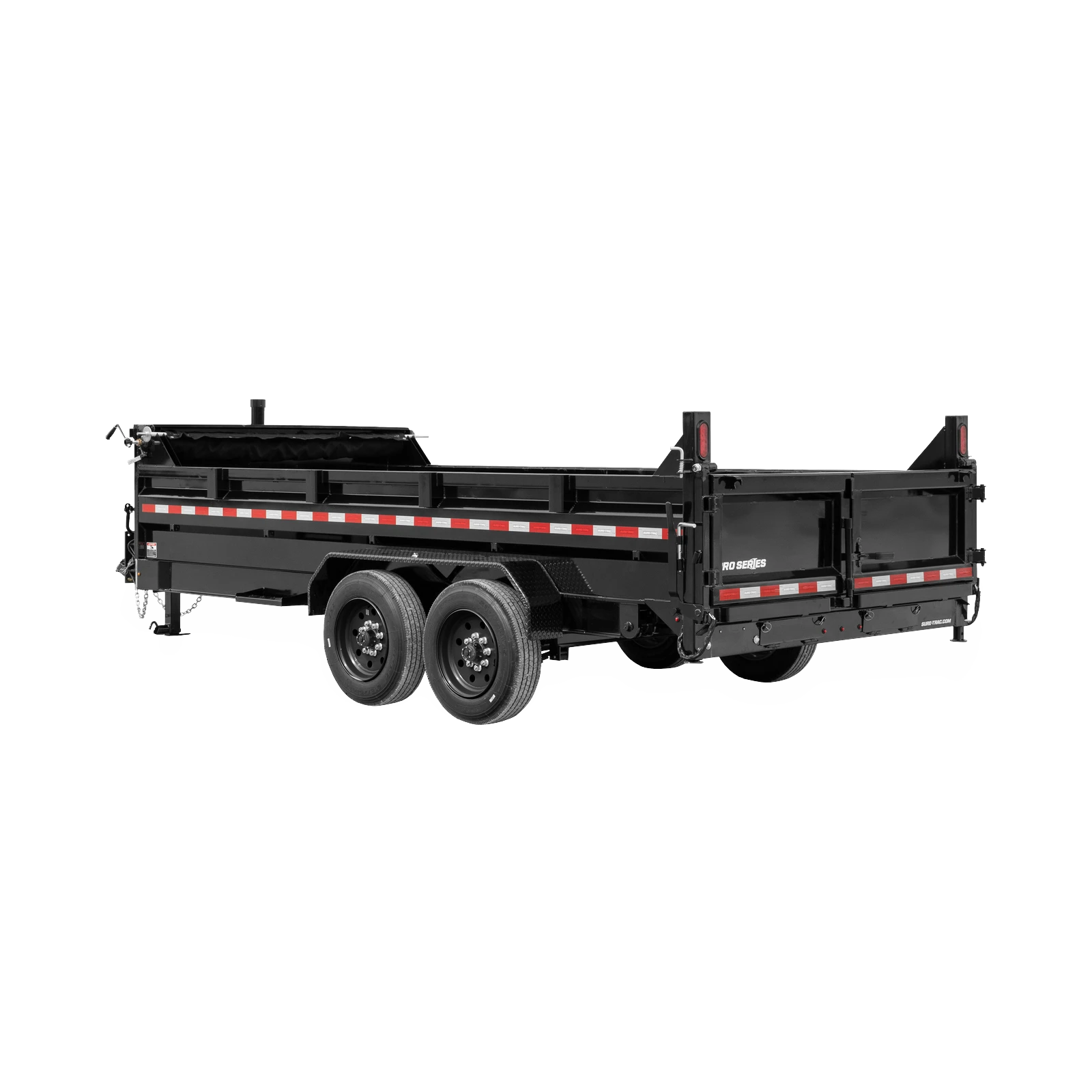

Black dump trailer with dual axles and red/white reflective tape along the sides, shown in a side view on a white background

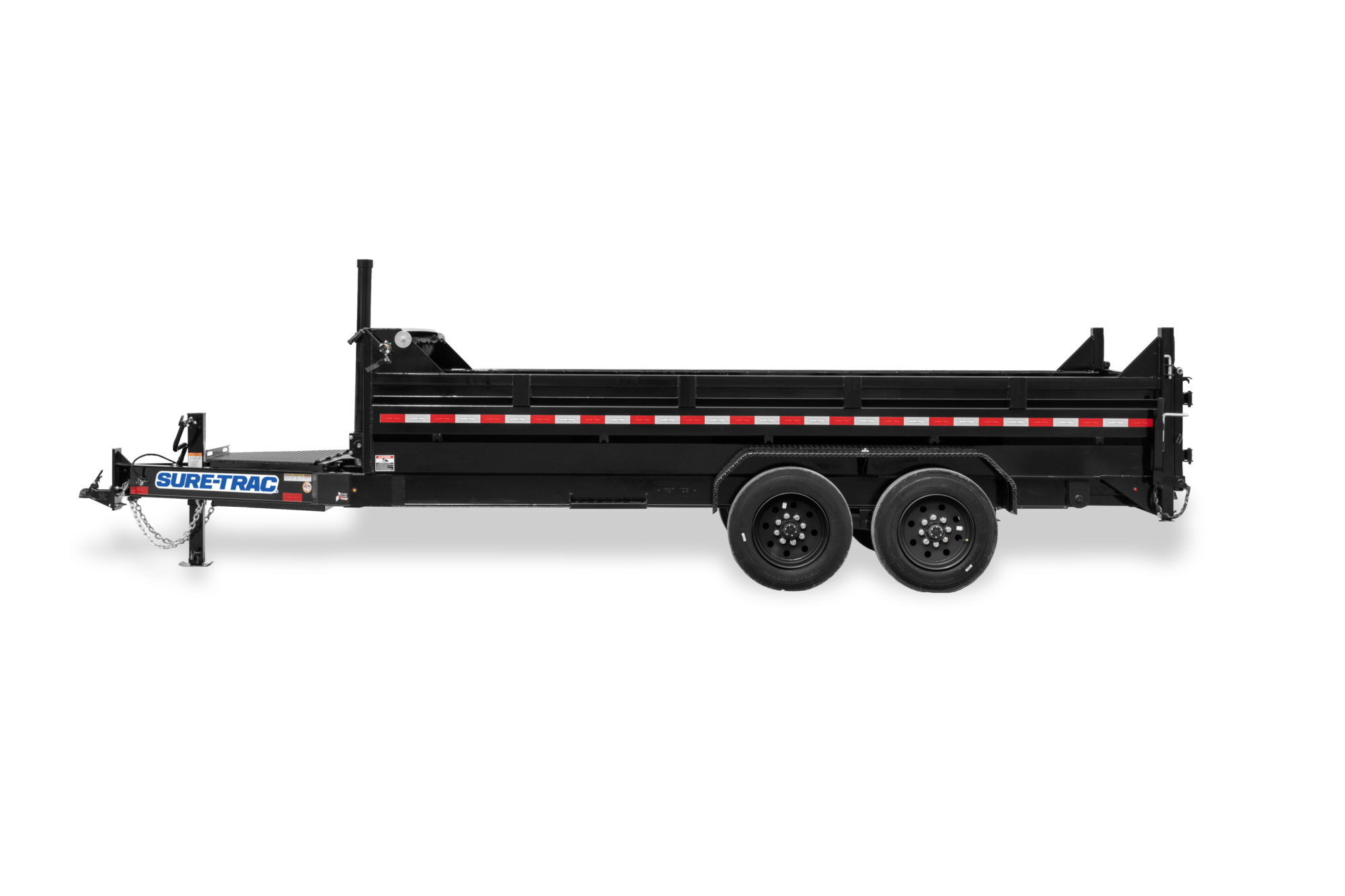

Pro Series Telescopic Dump | Side, straight, with reflective tape, down position

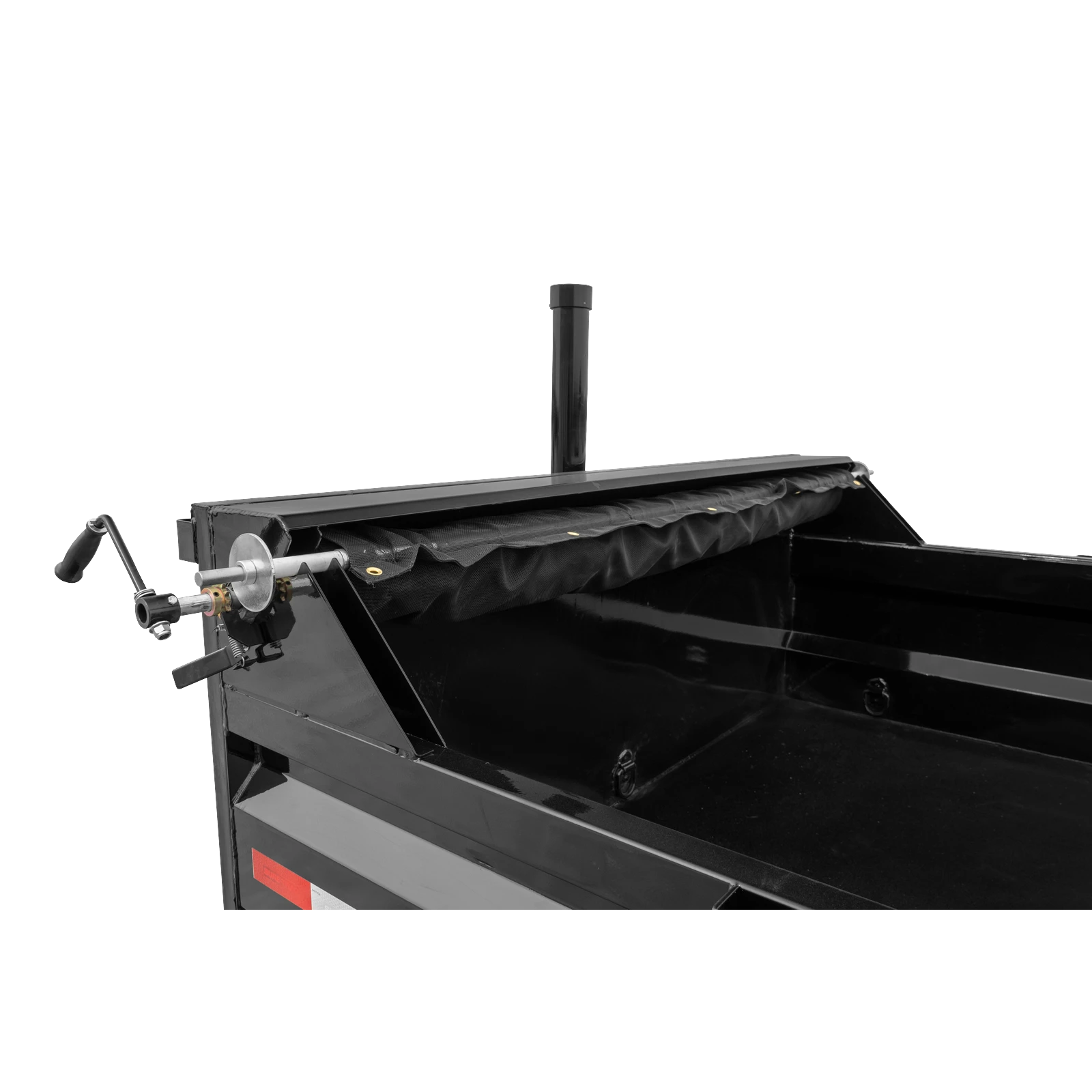

Close-up of a black metal trailer/dumper with a vertical pipe/chute and a side crank handle showing mechanical components.

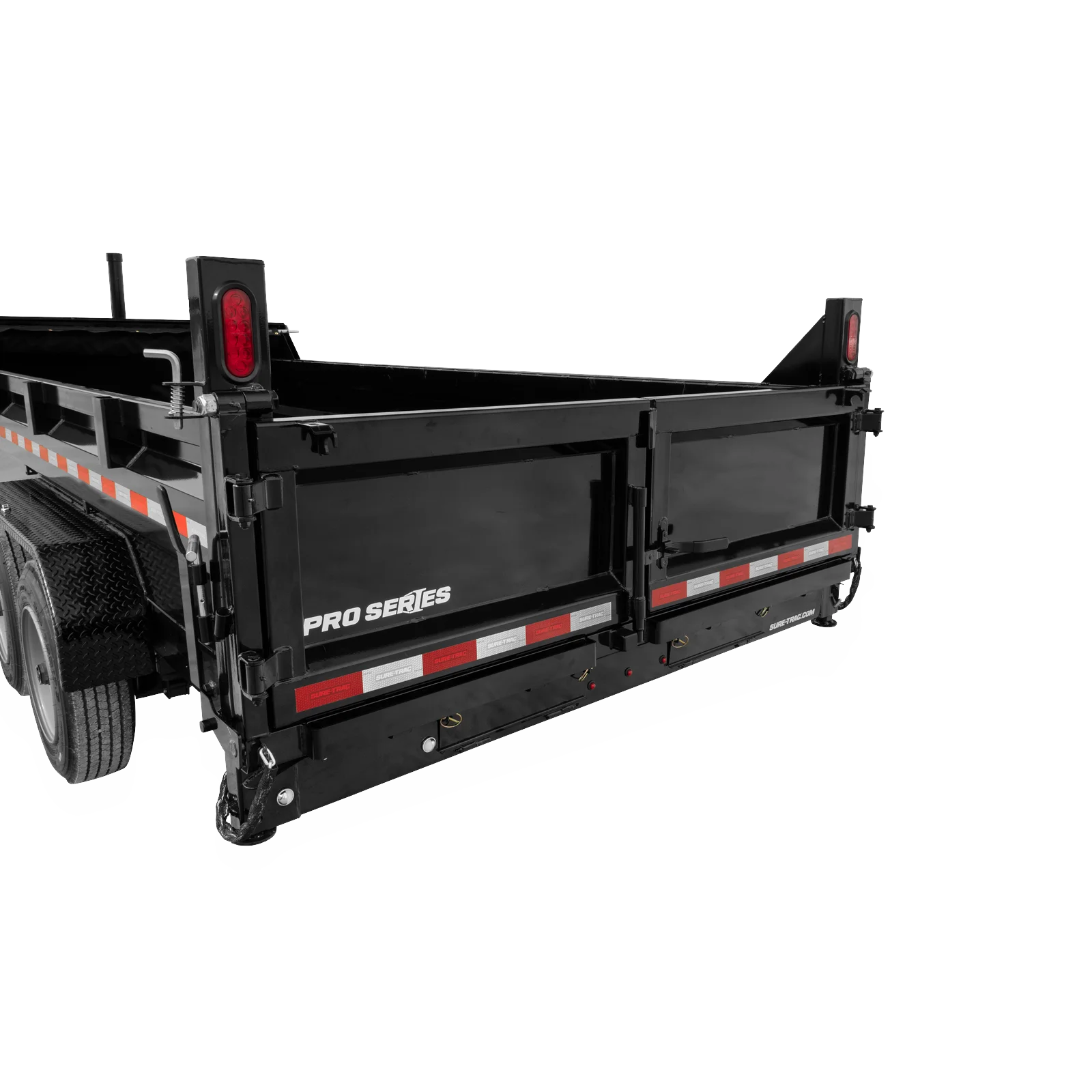

Rear-left view of a black dump trailer with red taillights, reflective stripes, and a sturdy metal bed labeled 'Pro Series'.

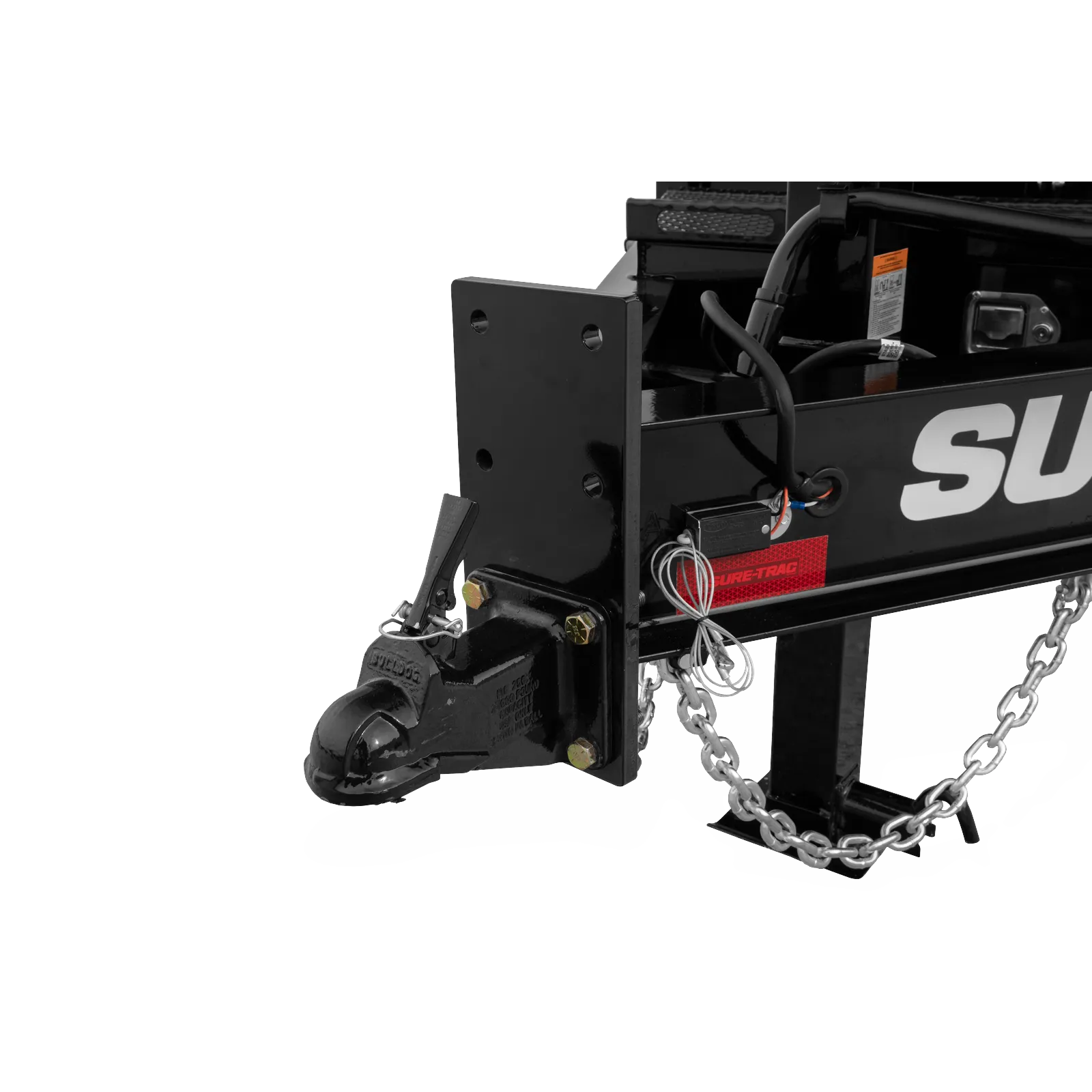

Close-up of a black trailer hitch with safety chains and wiring harness visible, on a white background

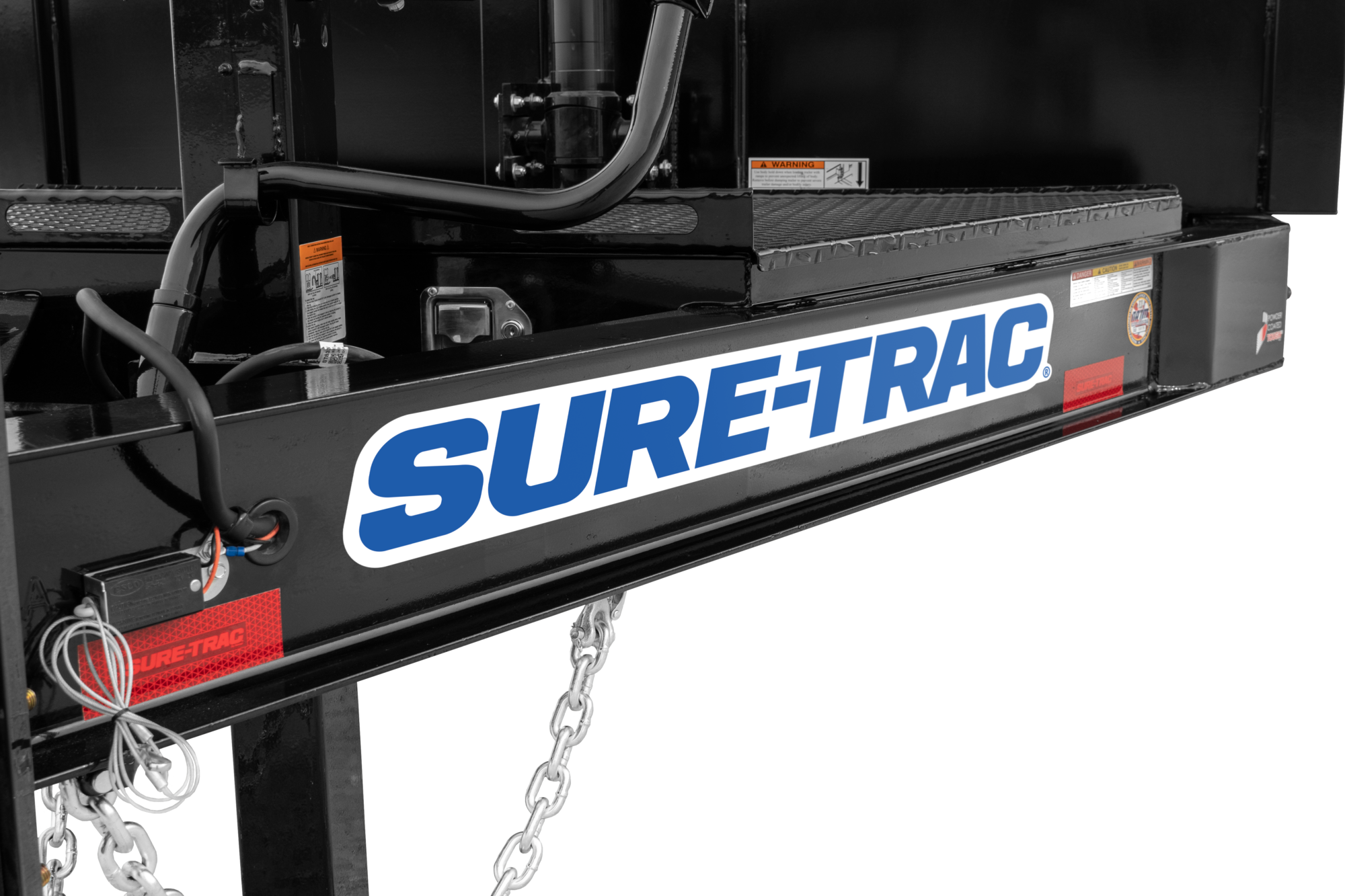

Pro Series Telescopic Dump | with reflective tape, close-up of I Beam and Tongue

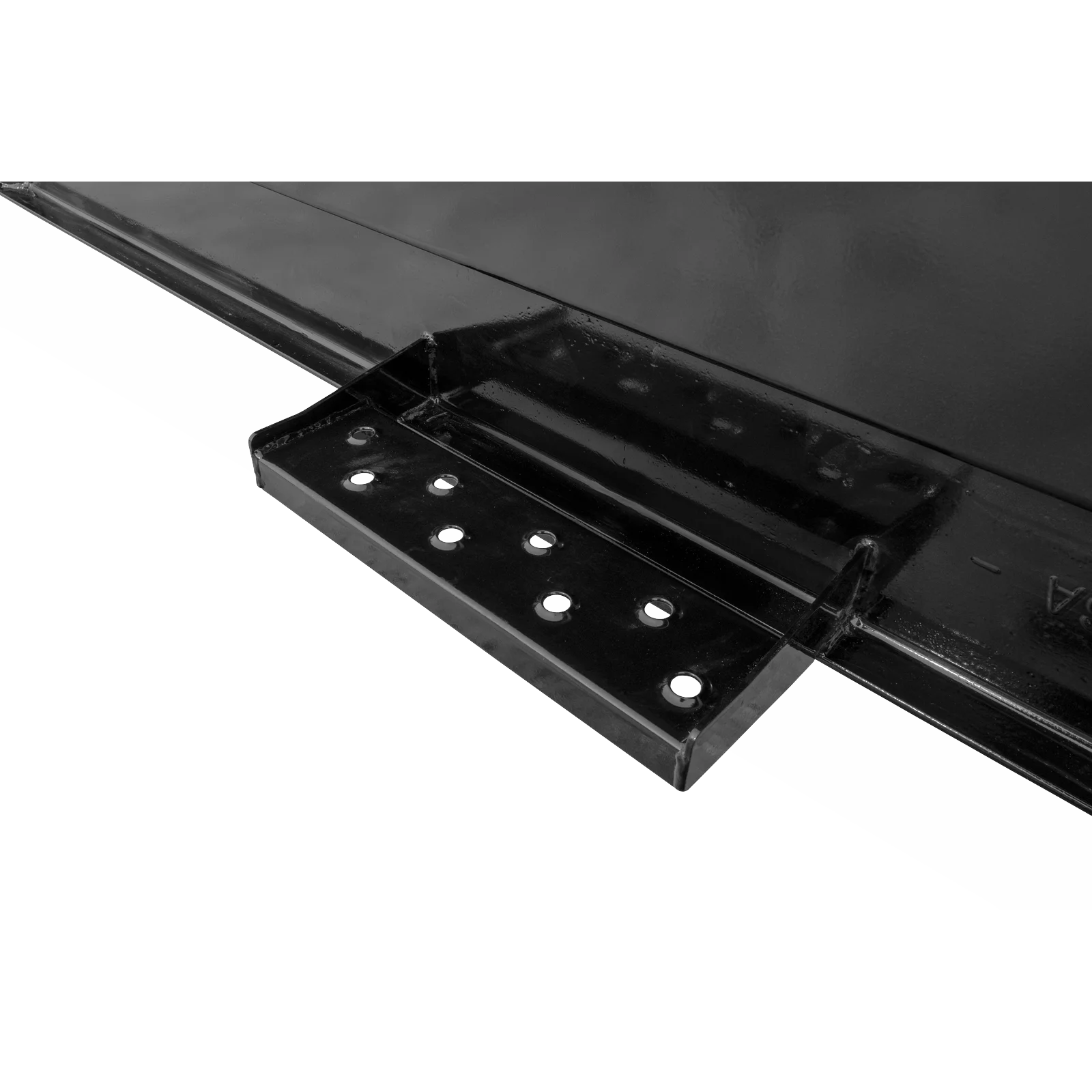

Close-up of a black metal bracket with circular mounting holes and a glossy finish

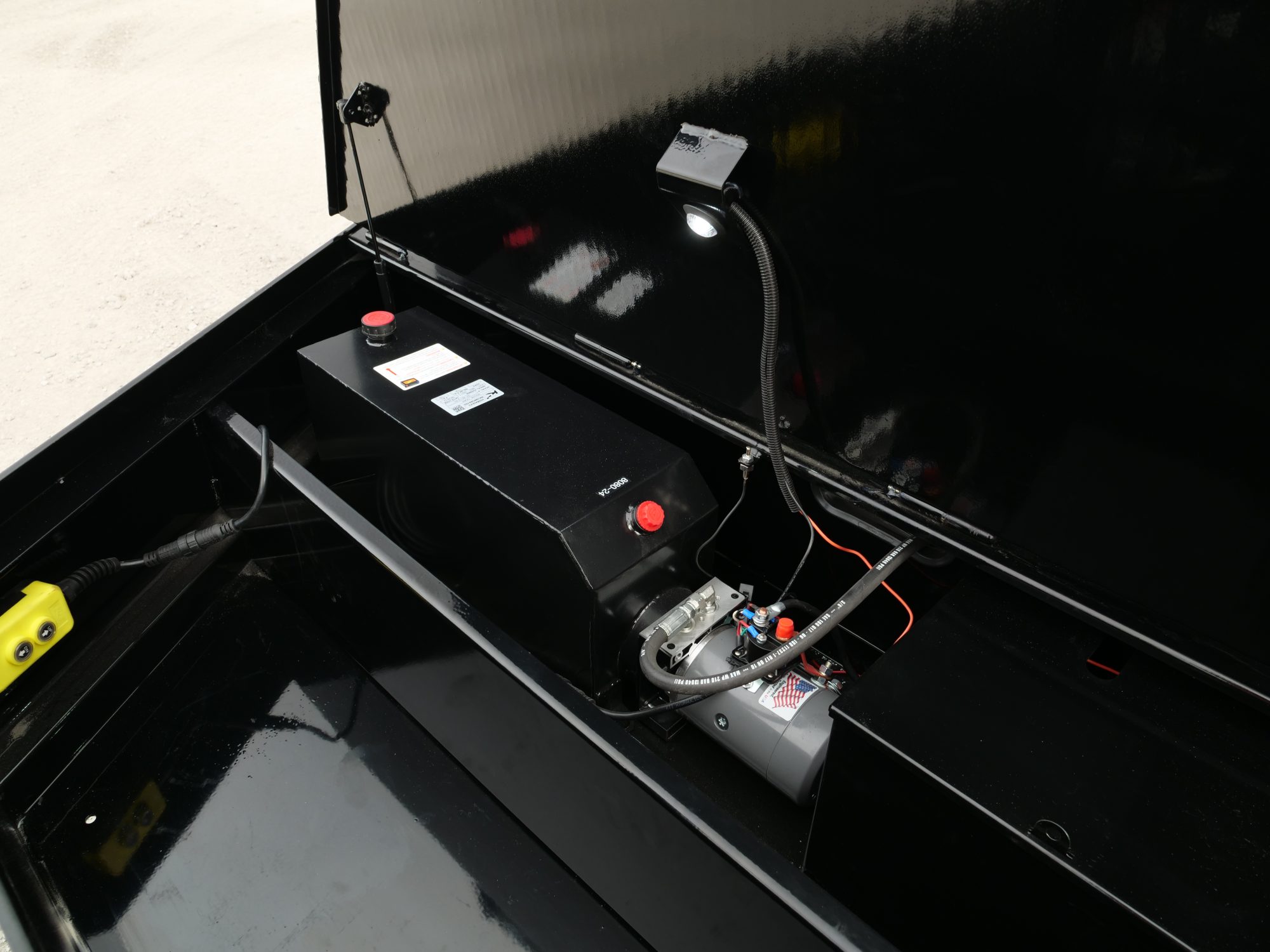

tool box close up

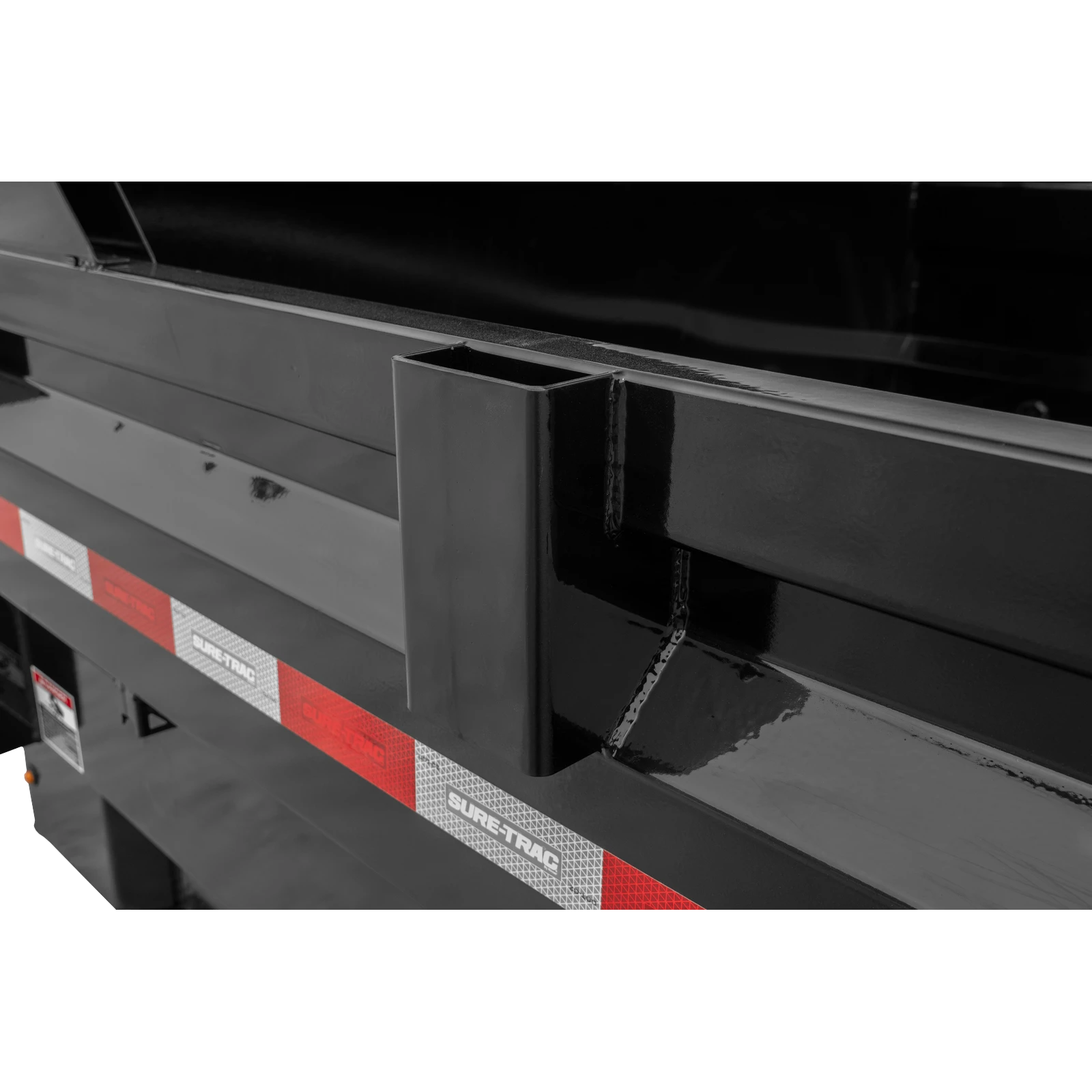

Close-up of a square metal post and rail on a trailer with red reflective safety tape along the side.

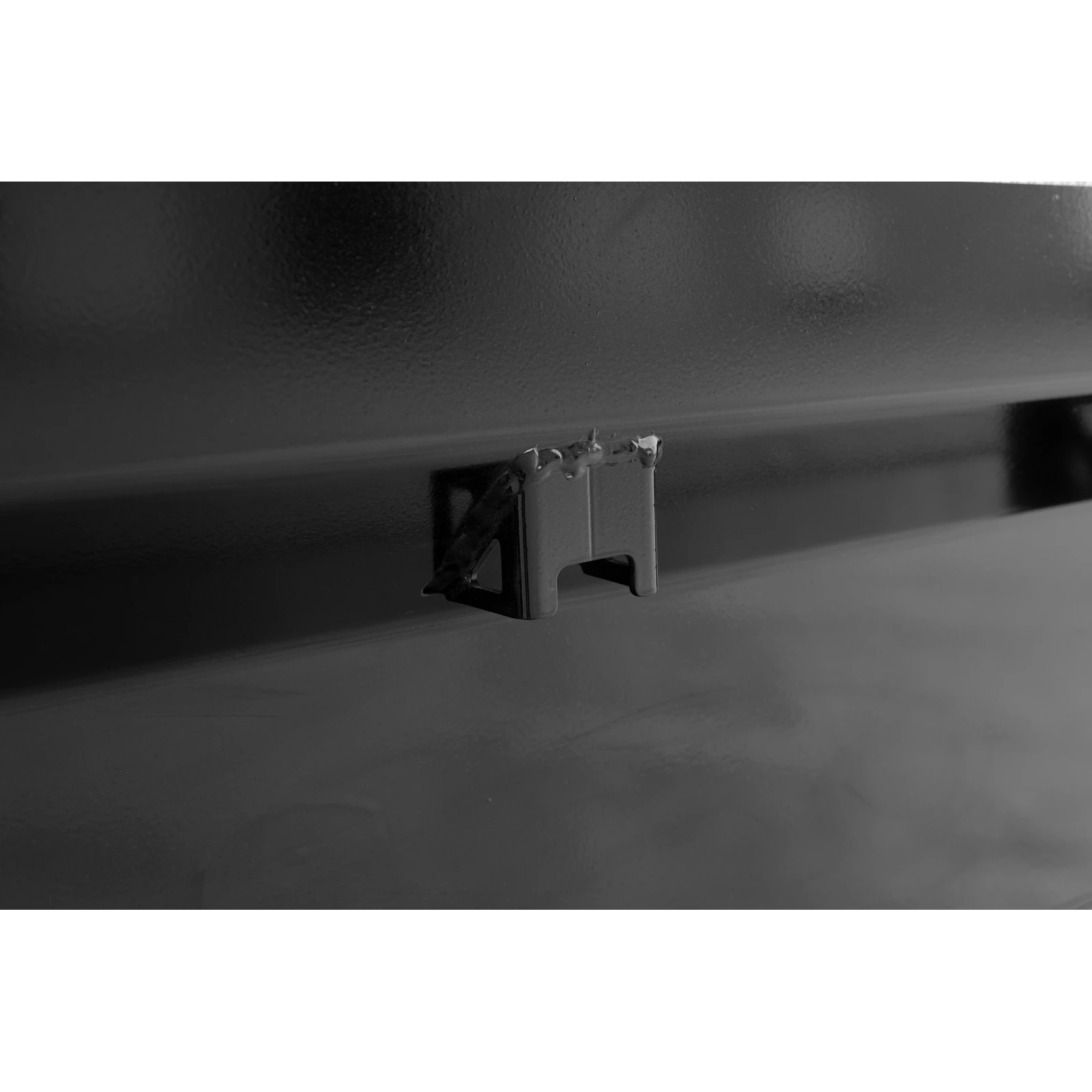

Close-up of a small metal latch attached to a dark, glossy surface in a monochrome photo.

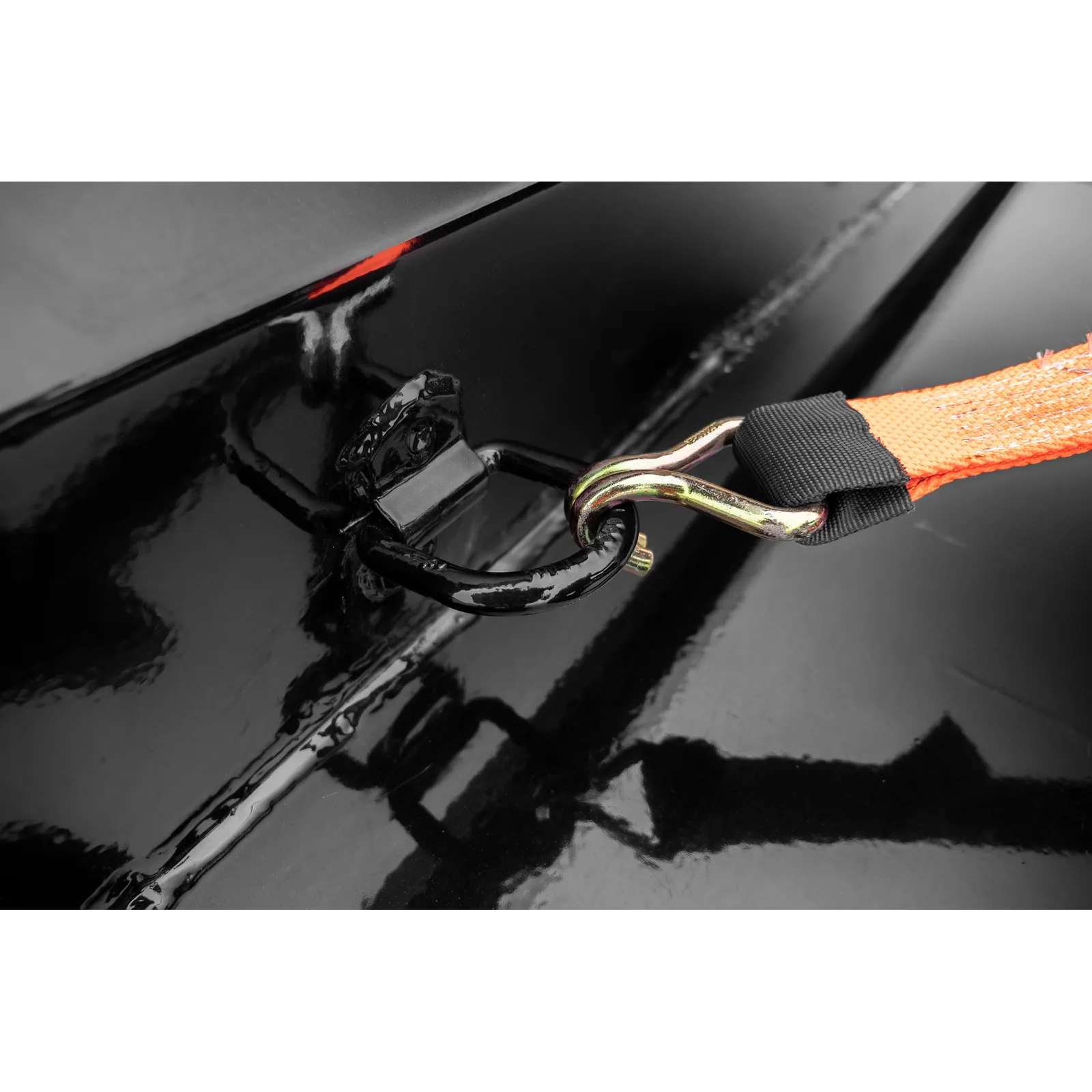

Close-up of an orange strap with a metal hook clipped to a glossy black surface, showing reflections in the shine.

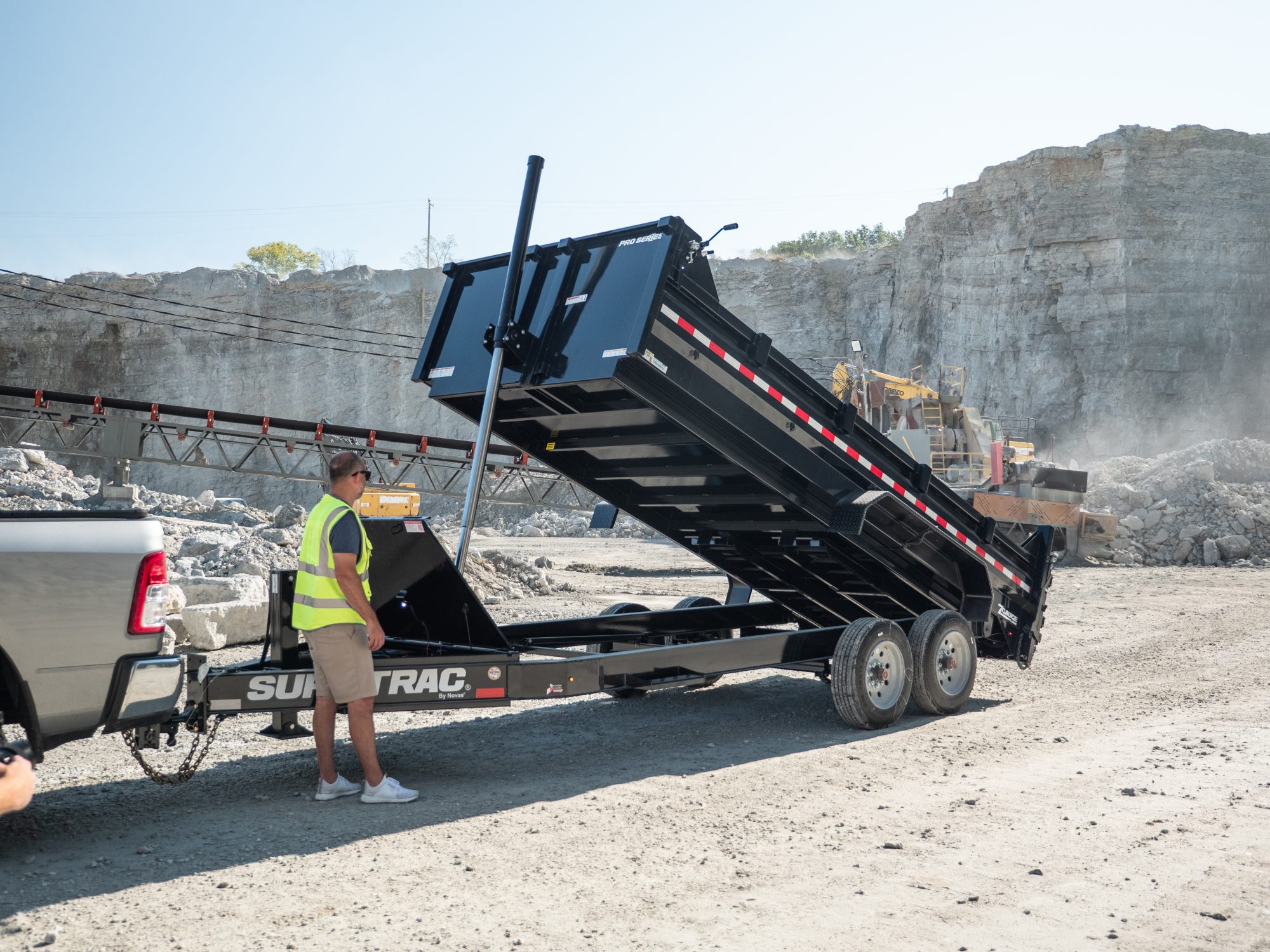

Trailers | Featured 2023_ProSeriesDump_Lifestyle-26
Trailers | Featured 2023_ProSeriesDump_Lifestyle-26
Trailers | Featured 2023_ProSeriesDump_Lifestyle-26
Trailers | Featured 2023_ProSeriesDump_Lifestyle-26
Trailers | Featured 2023_ProSeriesDump_Lifestyle-26

Model Color Options:

Selected Color

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose a Sure-Trac Pro Series Telescopic Dump Trailer?

Built with high-strength steel, the Pro Series Telescopic Dump Trailer ensures long-term reliability and can withstand the rigors of frequent use. The trailer’s low-profile design provides easy loading, while the heavy-duty ramps and D-rings offer secure and versatile options for transporting equipment.

Additional features like the integrated tarp kit, underbody tool storage, and an adjustable coupler further enhance the functionality of this trailer, making it a complete solution for a variety of hauling tasks. Whether you're transporting gravel, mulch, debris, or machinery, the Pro Series Telescopic Dump Trailer is built to handle the load with efficiency and ease.

In addition, these models are available with 3' and 4' side options, allowing you to customize the trailer to better meet your daily hauling demands. With higher sides, you can increase the trailer's volume capacity, making it ideal for transporting larger loads of gravel, debris, or other materials, while maintaining the strength and stability needed for heavy-duty applications.

For professionals looking to invest in a trailer that combines strength, performance, and convenience, the Sure-Trac Pro Series Telescopic Dump Trailer offers the ultimate in hauling capability, designed to make your day-to-day grind easier and more efficient.

Models

7 x 14

Pro Series HS Telescopic Dump 15.4K
15400 lbs
Model #
ST-BTL48214-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5020 lbs

7 x 14

Pro Series HS Telescopic Dump 15.4K
15400 lbs
Model #
ST-BTL38214-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5020 lbs

7 x 14

Gooseneck Pro Series HS Telescopic Dump GN 15.4K
15400 lbs
Model #
ST-BTL48214-154G
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5020 lbs

7 x 14

Gooseneck Pro Series HS Telescopic Dump GN 15.4K
15400 lbs
Model #
ST-BTL38214-154G
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5020 lbs

7 x 14

Pro Series Telescopic Dump 15.4K
15400 lbs
Model #
ST-BTL8214-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4580 lbs

7 x 14

Gooseneck Pro Series Telescopic Dump GN 15.4K
15400 lbs
Model #
ST-BTL8214-154G
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5020 lbs

7 x 14

Pro Series HS Telescopic Dump 17.6K
17600 lbs
Model #
ST-BTL48214-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4986 lbs

7 x 14

Pro Series HS Telescopic Dump 17.6K
17600 lbs
Model #
ST-BTL38214-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4903 lbs

7 x 14

Gooseneck Pro Series HS Telescopic Dump GN 17.6K
17600 lbs
Model #
ST-BTL48214-176G
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5020 lbs

7 x 14

Pro Series Telescopic Dump 17.6K
17600 lbs
Model #
ST-BTL8214-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4820 lbs

7 x 14

Gooseneck Pro Series Telescopic Dump GN 17.6K
17600 lbs
Model #
ST-BTL8214-176G
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5020 lbs

7 x 14

Pro Series HS Telescopic Dump 22K
22000 lbs
Model #
ST-BTL48214-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5472 lbs

7 x 14

Pro Series HS Telescopic Dump 22K
22000 lbs
Model #
ST-BTL38214-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5472 lbs

7 x 14

Gooseneck Pro Series HS Telescopic Dump GN 22K
22000 lbs
Model #
ST-BTL48214-220G
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5472 lbs

7 x 14

Gooseneck Pro Series HS Telescopic Dump GN 22K
22000 lbs
Model #
ST-BTL38214-220G
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5472 lbs

7 x 14

Pro Series Telescopic Dump 22K
22000 lbs
Model #
ST-BTL8214-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5275 lbs

7 x 14

Gooseneck Pro Series Telescopic Dump GN 22K
22000 lbs
Model #
ST-BTL8214-220G
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5472 lbs

7 x 16

Pro Series HS Telescopic Dump 15.4K
15400 lbs
Model #
ST-BTL48216-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5020 lbs

7 x 16

Pro Series HS Telescopic Dump 15.4K
15400 lbs
Model #
ST-BTL38216-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5020 lbs

7 x 16

Gooseneck Pro Series HS Telescopic Dump GN 15.4K
15400 lbs
Model #
ST-BTL48216-154G
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5020 lbs

7 x 16

Gooseneck Pro Series HS Telescopic Dump GN 15.4K
15400 lbs
Model #
ST-BTL38216-154G
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5020 lbs

7 x 16

Pro Series Telescopic Dump 15.4K
15400 lbs
Model #
ST-BTL8216-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4780 lbs

7 x 16

Gooseneck Pro Series Telescopic Dump GN 15.4K
15400 lbs
Model #
ST-BTL8216-154G
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5020 lbs

7 x 16

Pro Series HS Telescopic Dump 17.6K
17600 lbs
Model #
ST-BTL48216-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5020 lbs

7 x 16

Pro Series HS Telescopic Dump 17.6K
17600 lbs
Model #
ST-BTL38216-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5780 lbs

7 x 16

Gooseneck Pro Series HS Telescopic Dump GN 17.6K
17600 lbs
Model #
ST-BTL48216-176G
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5020 lbs

7 x 16

Pro Series Telescopic Dump 17.6K
17600 lbs
Model #
ST-BTL8216-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5020 lbs

7 x 16

Gooseneck Pro Series Telescopic Dump GN 17.6K
17600 lbs
Model #
ST-BTL8216-176G
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5020 lbs

7 x 16

Pro Series HS Telescopic Dump 22K
22000 lbs
Model #
ST-BTL48216-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5472 lbs

7 x 16

Pro Series HS Telescopic Dump 22K
22000 lbs
Model #
ST-BTL38216-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight

7 x 16

Gooseneck Pro Series HS Telescopic Dump GN 22K
22000 lbs
Model #
ST-BTL48216-220G
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5472 lbs

7 x 16

Gooseneck Pro Series HS Telescopic Dump GN 22K
22000 lbs
Model #
ST-BTL38216-220G
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5472 lbs

7 x 16

Gooseneck Pro Series HS Telescopic Dump GN 22K
22000 lbs
Model #
ST-BTL38216-3A-220G
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
6680 lbs

7 x 16

Gooseneck Pro Series HS Telescopic Dump GN 22K
22000 lbs
Model #
ST-BTL48216-3A-220G
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
6940 lbs

7 x 16

Pro Series Telescopic Dump 22K
22000 lbs
Model #
ST-BTL8216-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
6160 lbs

7 x 16

Gooseneck Pro Series Telescopic Dump GN 22K
22000 lbs
Model #
ST-BTL8216-220G
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5472 lbs

7 x 16

Gooseneck Pro Series Telescopic Dump GN 22K
22000 lbs
Model #
ST-BTL8216-3A-220G
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
6260 lbs

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
