Heavy Duty Low Profile Beavertail Deckover Trailer

Bed Width: 8.5
Bed Length: 20-40
GVWR: 15,000-32,000 lbs
GAWR: 7,000-16,000 lbs/axle
HDLP Beavertail Deckover Front

5′ Self-Cleaning Beavertail

A grated beavertail that automatically knocks dirt and other debris off the tires of the equipment you’re loading as it drives up the tail.

Universal Full-Width Ramps

Provides enhanced versatility and ease of loading, accommodating a wide range of equipment with smooth, reliable access.

Gooseneck Configuration

For less trailer sway and more stability while hauling, this model is available in a gooseneck configuration.

Side Steps

Easy access on and off of the deck of the trailer while you’re loading and unloading.

Heavy Duty Low Profile Beavertail Deckover Trailer

Discover the unmatched versatility and strength of the Sure-Trac Heavy Duty Low Profile Beavertail Deckover Trailer, designed to meet the demands of serious haulers. This trailer is the perfect solution for transporting heavy equipment, vehicles, and machinery with confidence and ease.

The beavertail design features a sloped rear section that provides a gentle incline, making loading and unloading significantly easier. This innovative feature reduces the risk of damage to your cargo while ensuring smooth transitions for wheeled equipment, such as tractors and vehicles. With a lower deck height, the trailer offers enhanced stability, giving you peace of mind on the road. And, if you want even more hauling stability, this model is available in a gooseneck configuration.

Key Benefits

Pierced I-Beam Frame

Strong structural integrity for the trailer to increase durability.

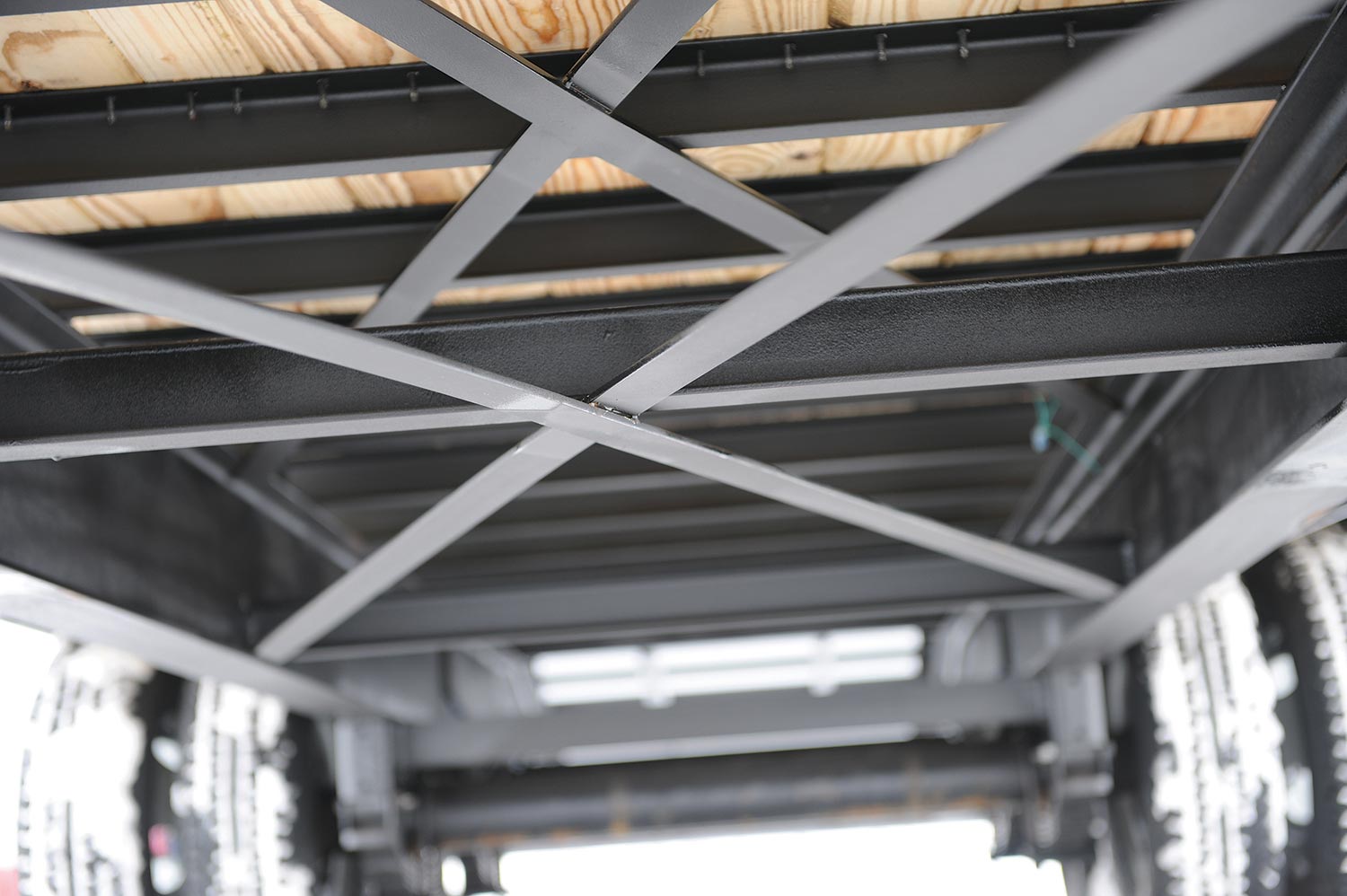

Cross-Trac™ Bracing

Reinforced bracing to add additional strength and hauling power.

5′ Self-Cleaning Beavertail

A grated beavertail that automatically knocks dirt and other debris off the tires of the equipment you’re loading as it drives up the tail.

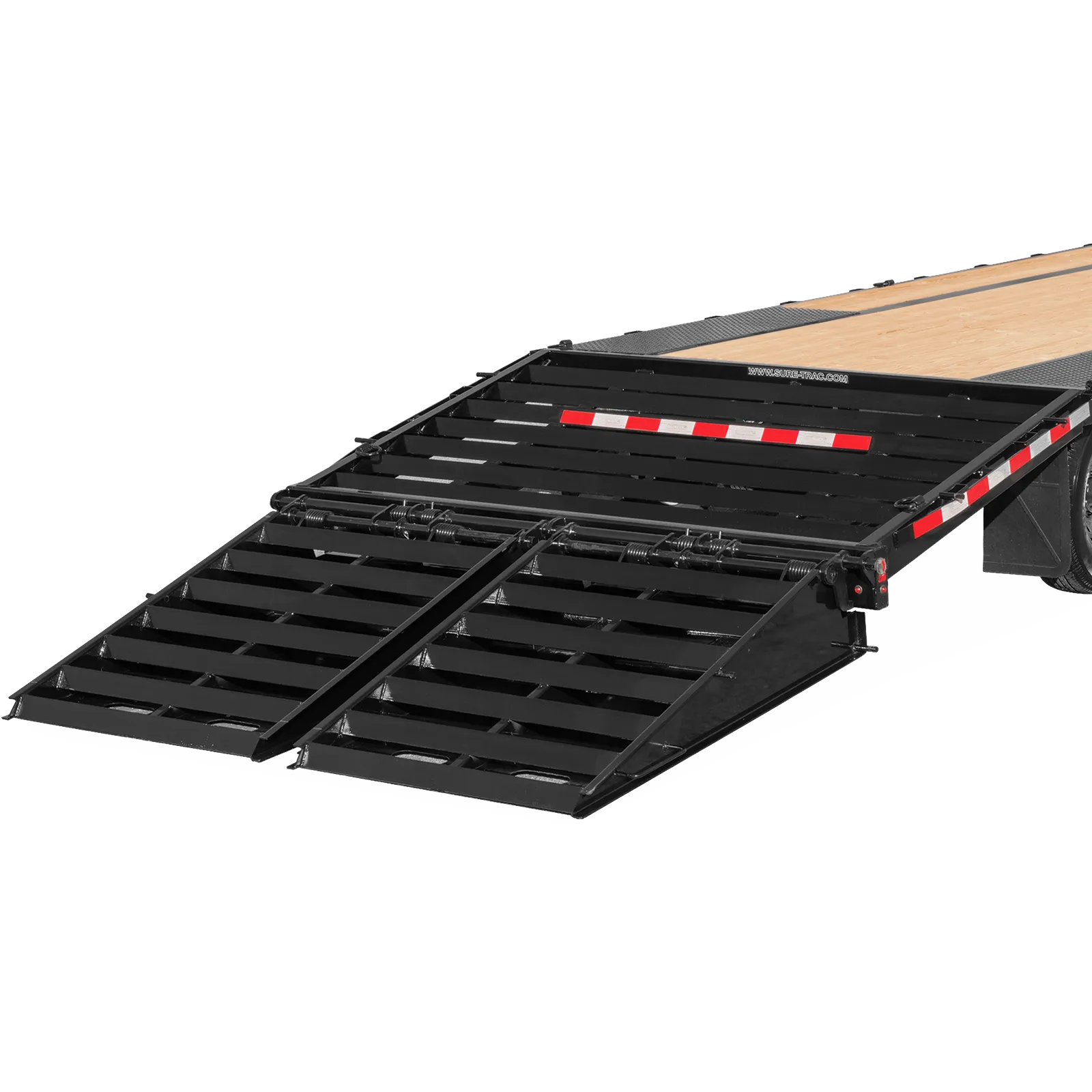

Universal Full-Width Ramps

Provides enhanced versatility and ease of loading, accommodating a wide range of equipment with smooth, reliable access.

Gooseneck Configuration

For less trailer sway and more stability while hauling, this model is available in a gooseneck configuration.

Side Steps

Easy access on and off of the deck of the trailer while you’re loading and unloading.

Explore This Trailer

HDLP Beavertail Deckover Front

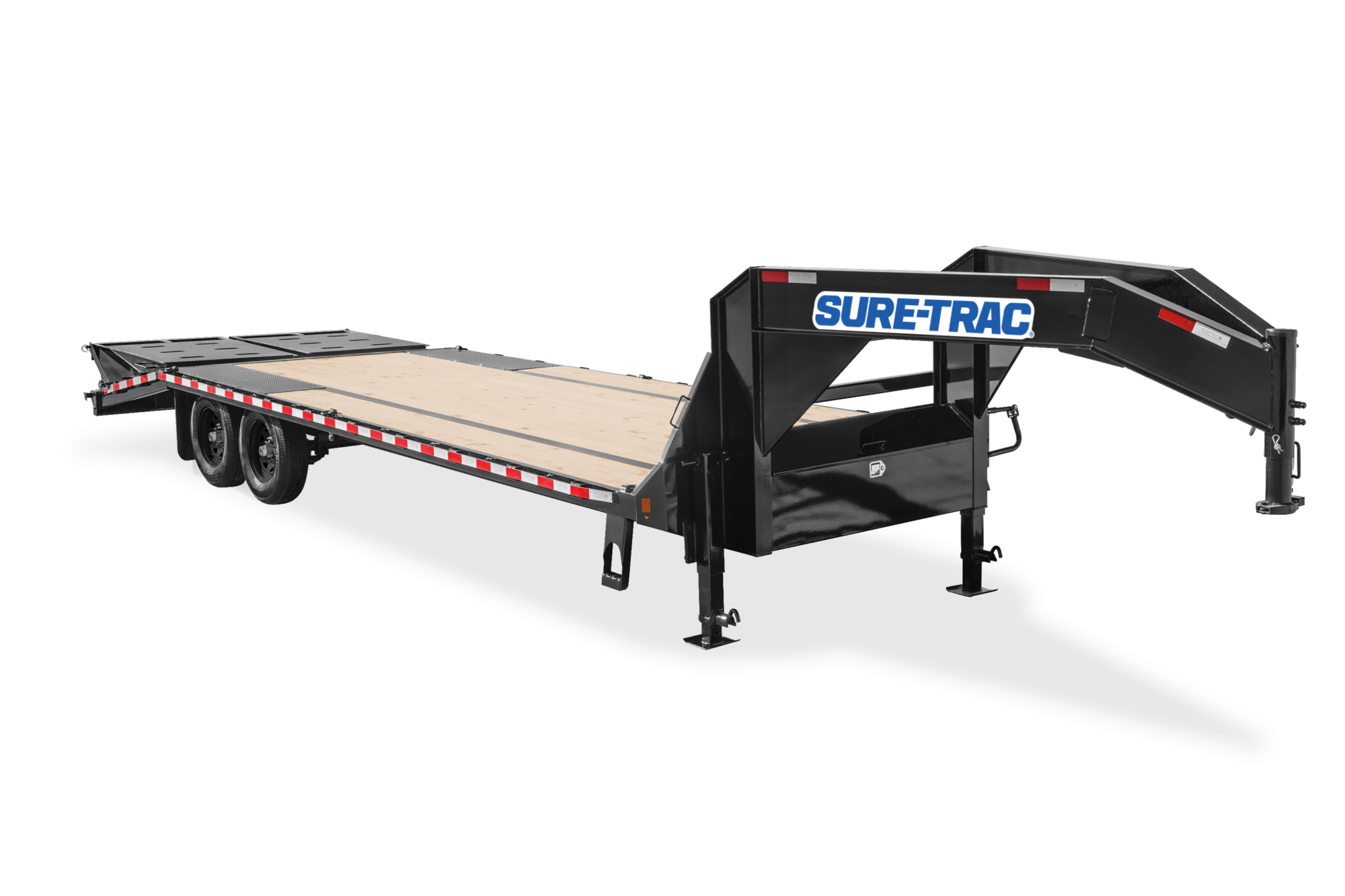

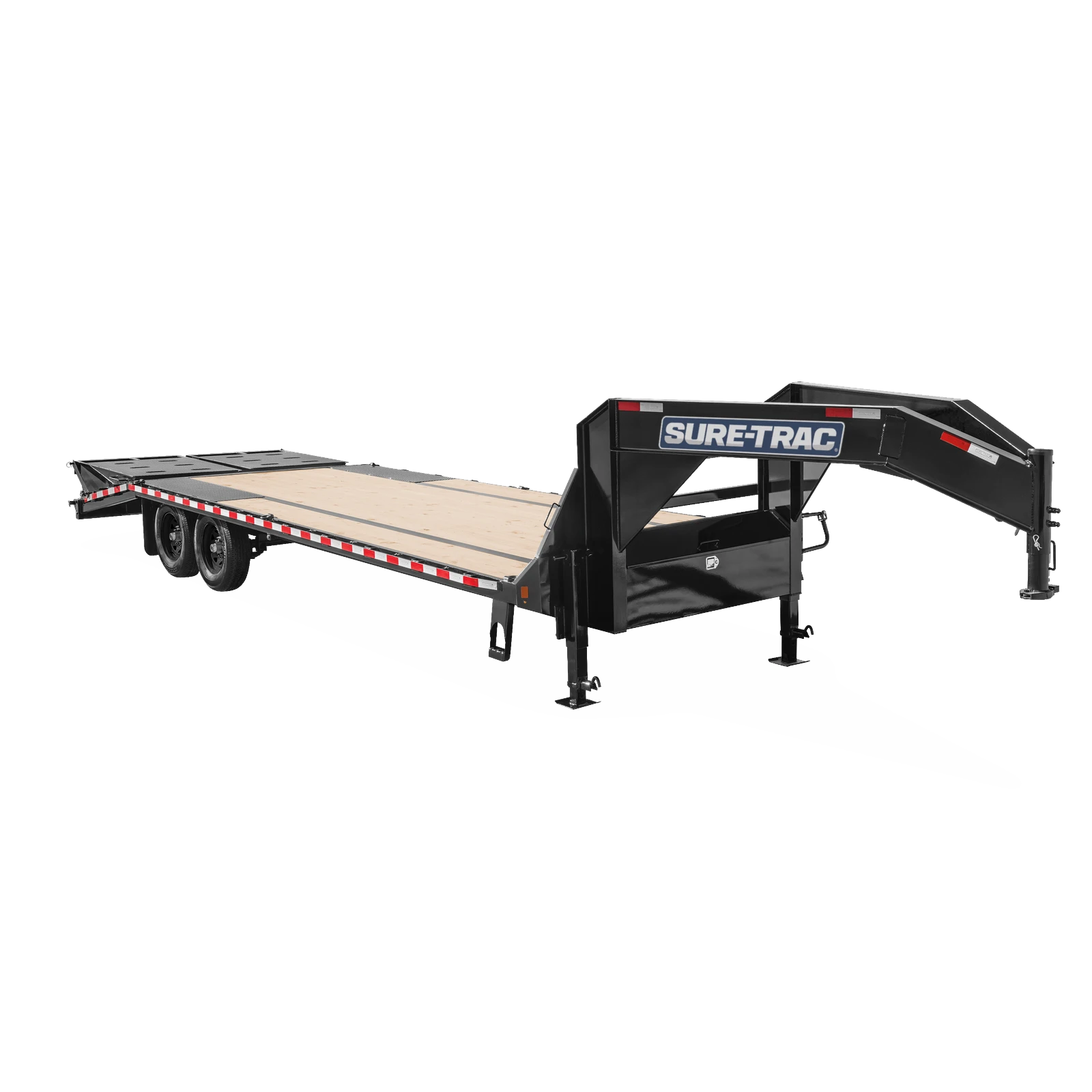

HDLP Beavertail Deckover Gooseneck Front

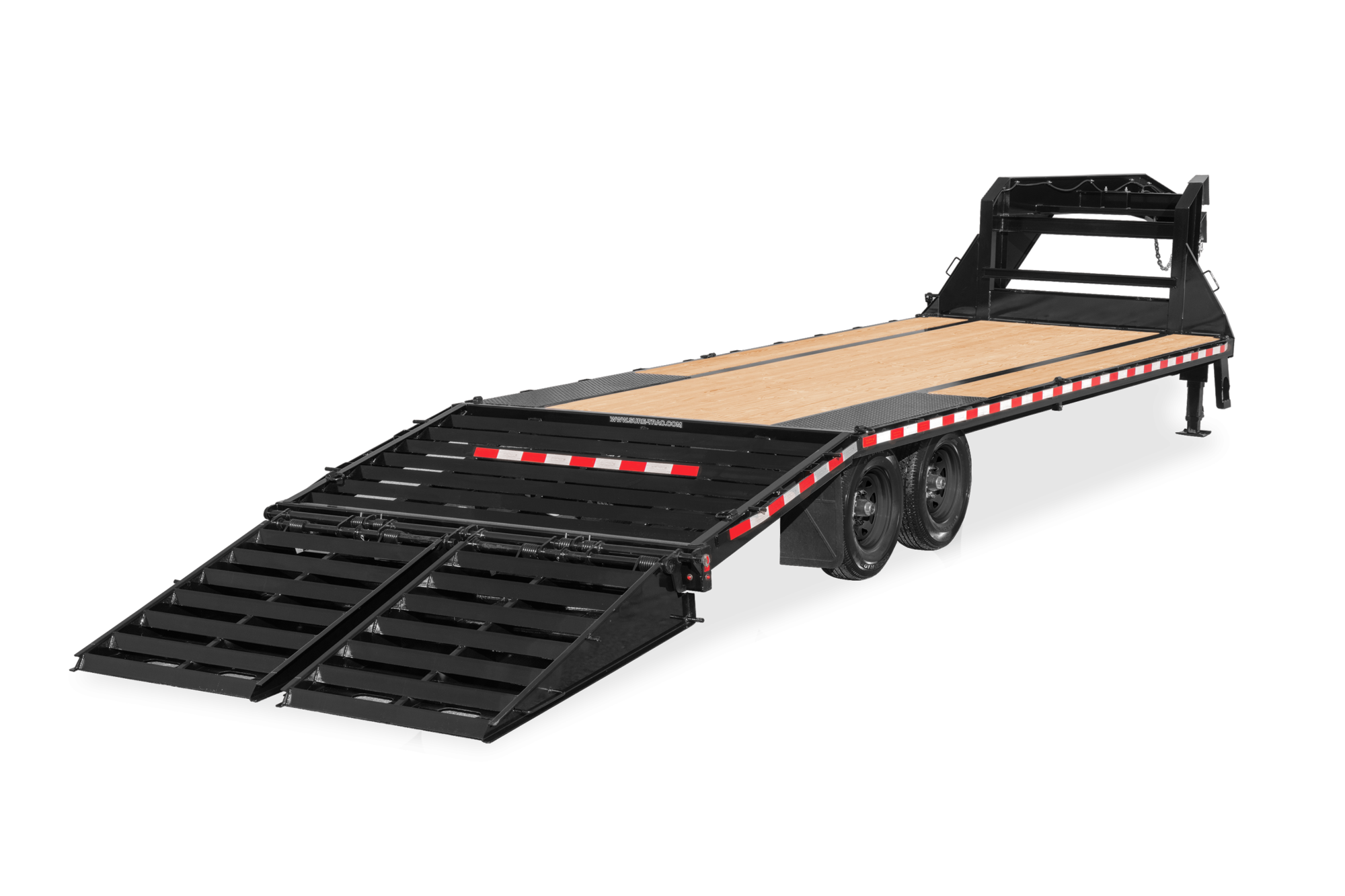

HDLP Beavertail Deckover Gooseneck Rear

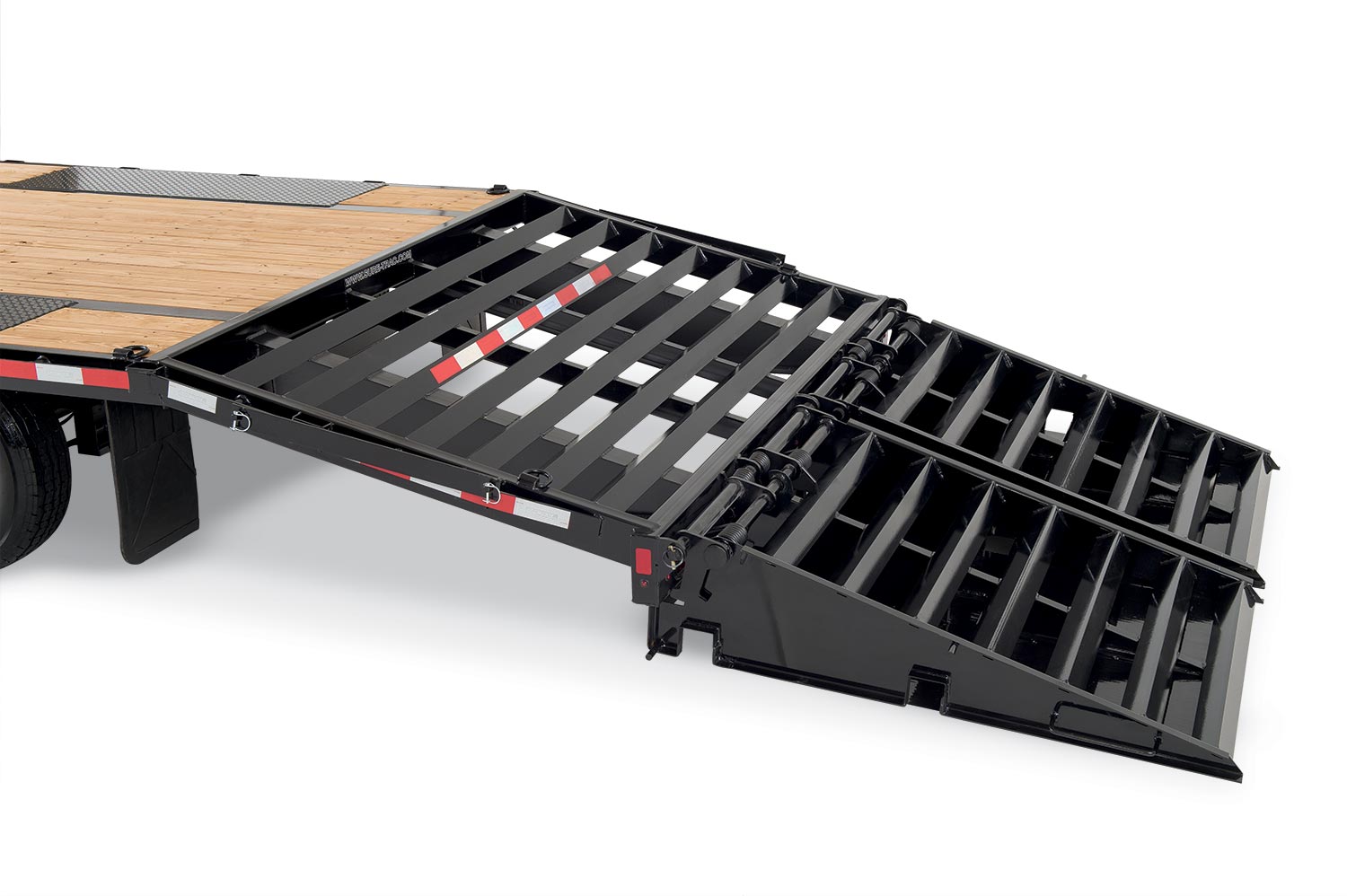

zoomed in view of the ramp on the Heavy Duty Low Profile Beavertail Deckover Trailer

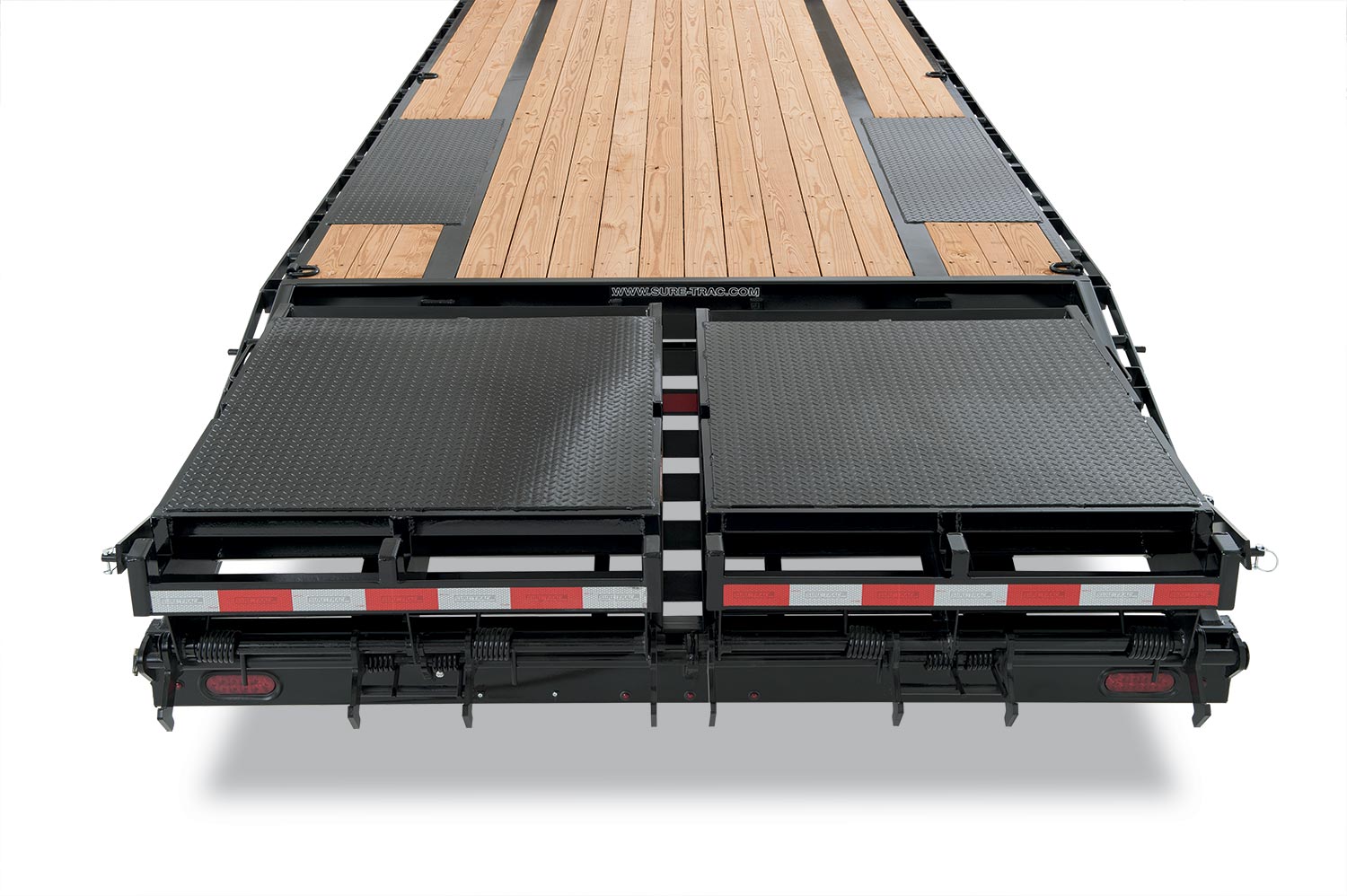

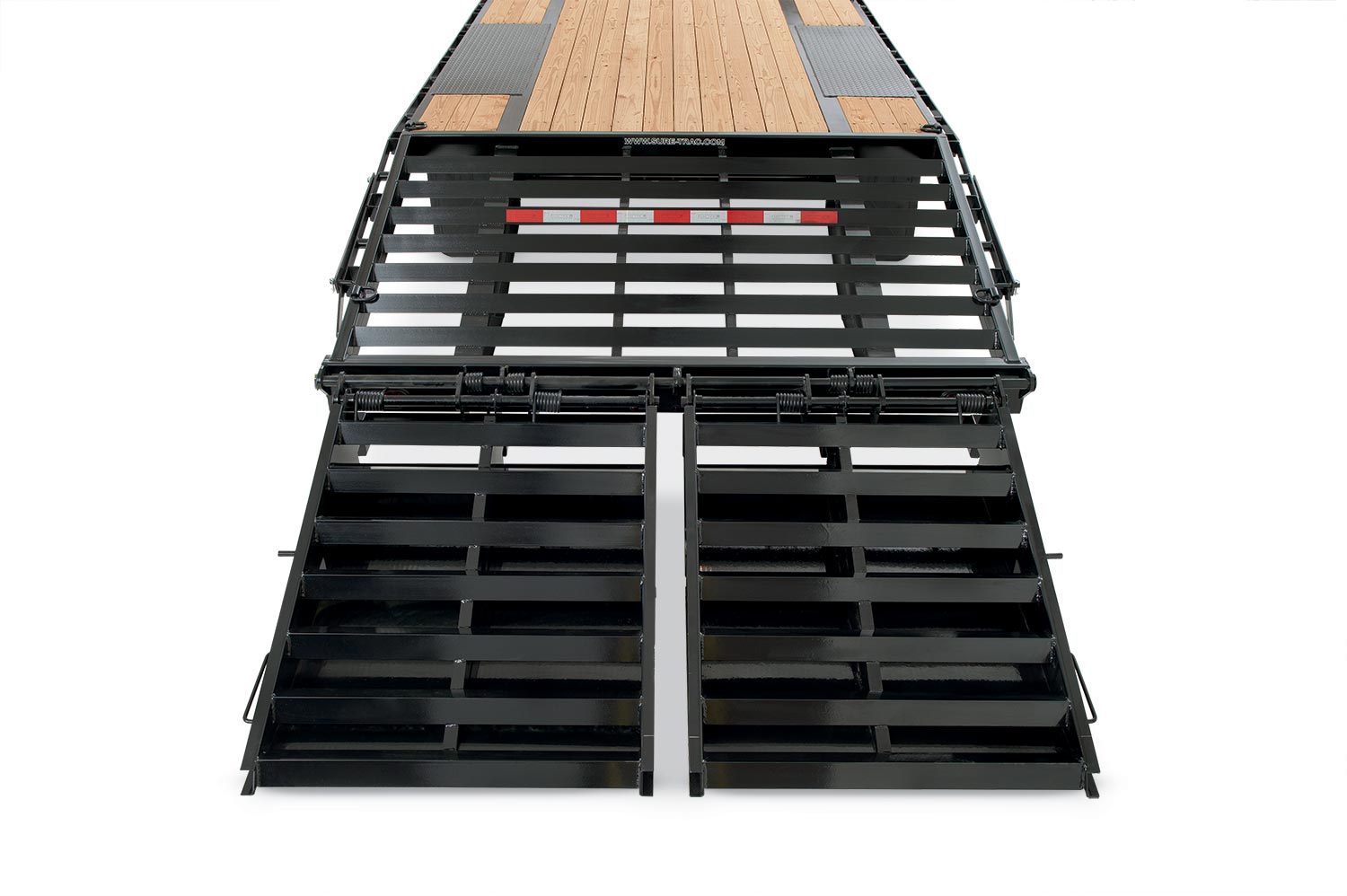

zoomed in rear view of the Heavy Duty Low Profile Beavertail Deckover Trailer with the ramp down

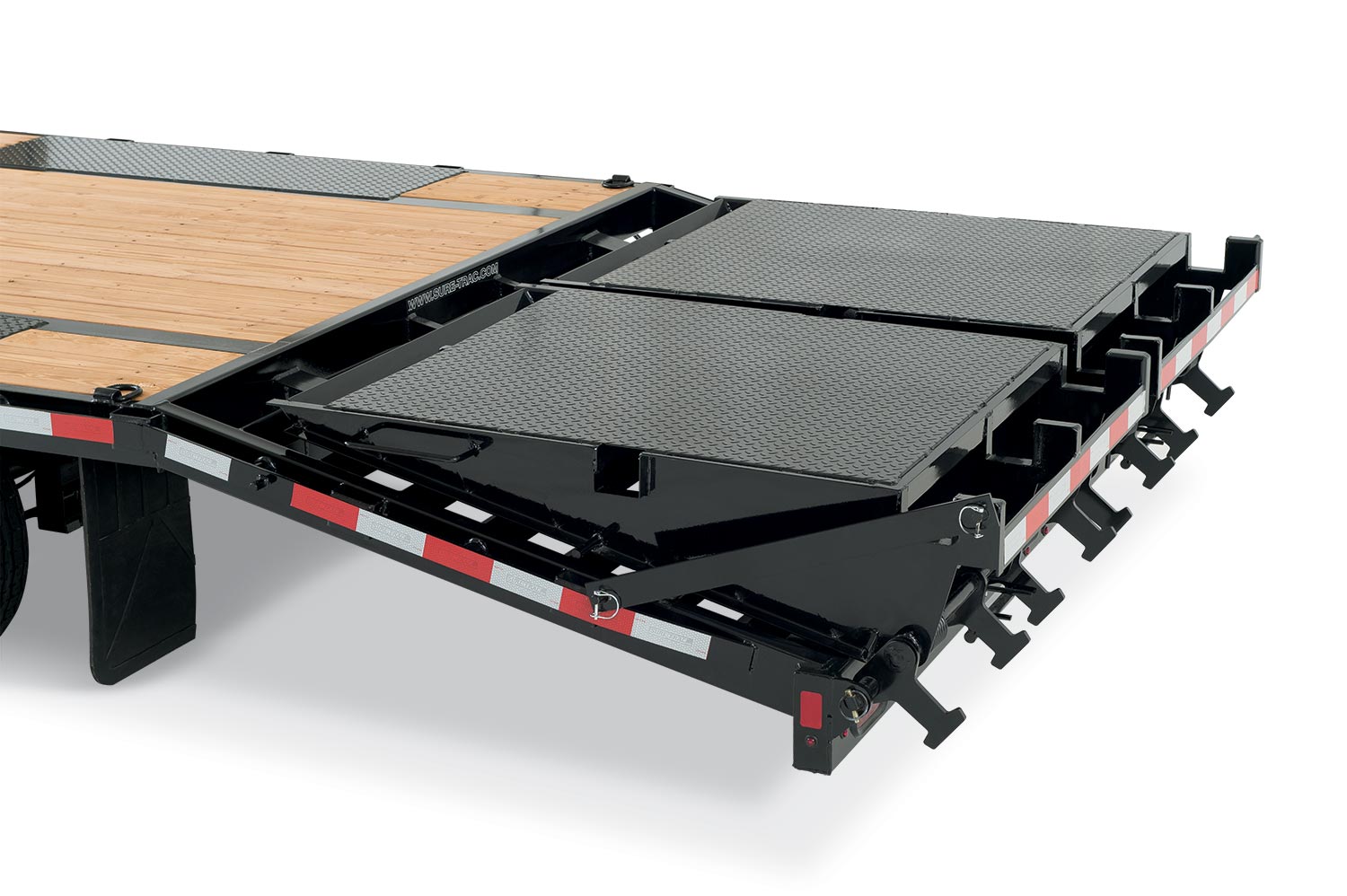

zoomed in view of the back ramp on the Heavy Duty Low Profile Beavertail Deckover Trailer
zoomed in rear view of the Heavy Duty Low Profile Beavertail Deckover Trailer

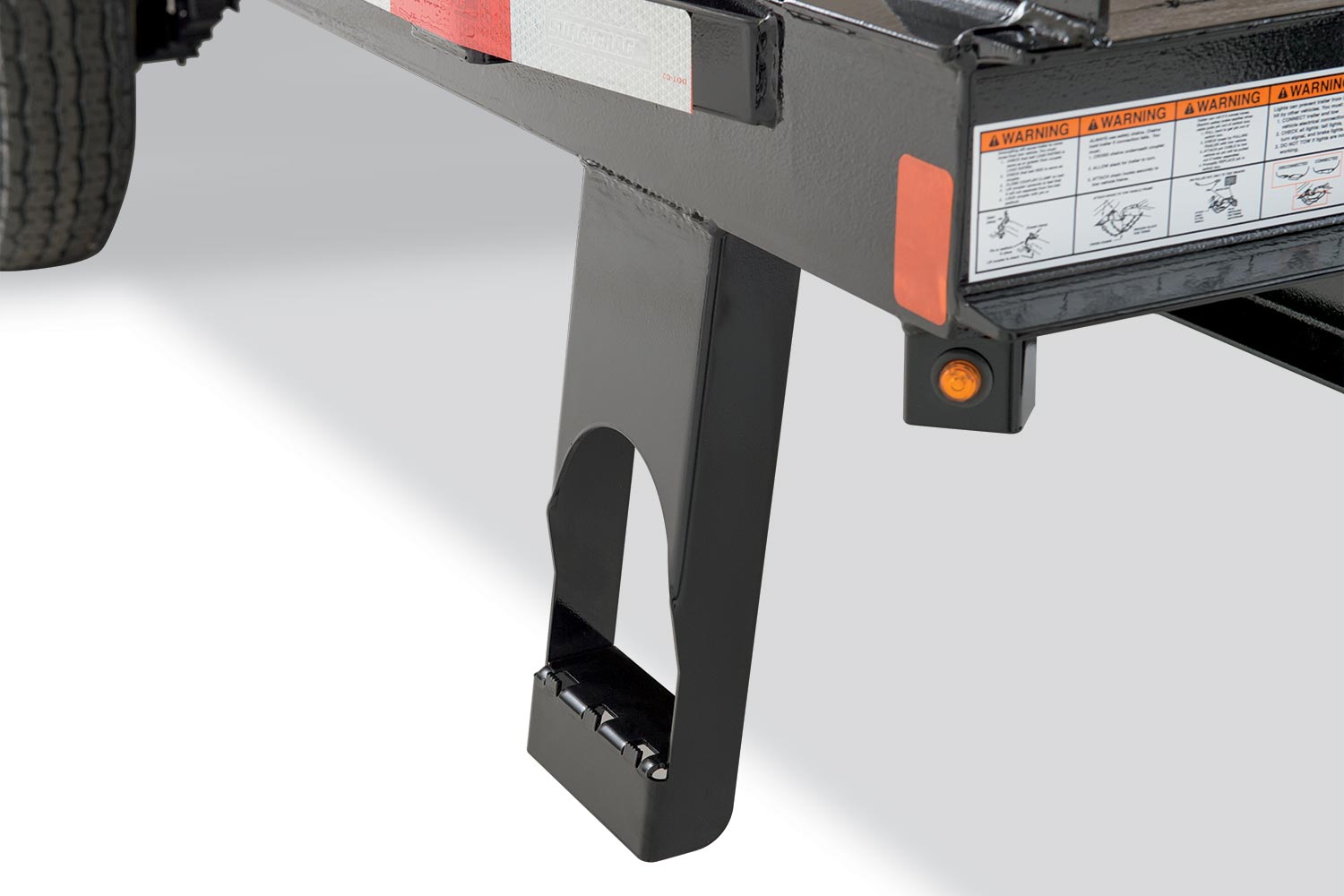

Close-Up of the Side Step

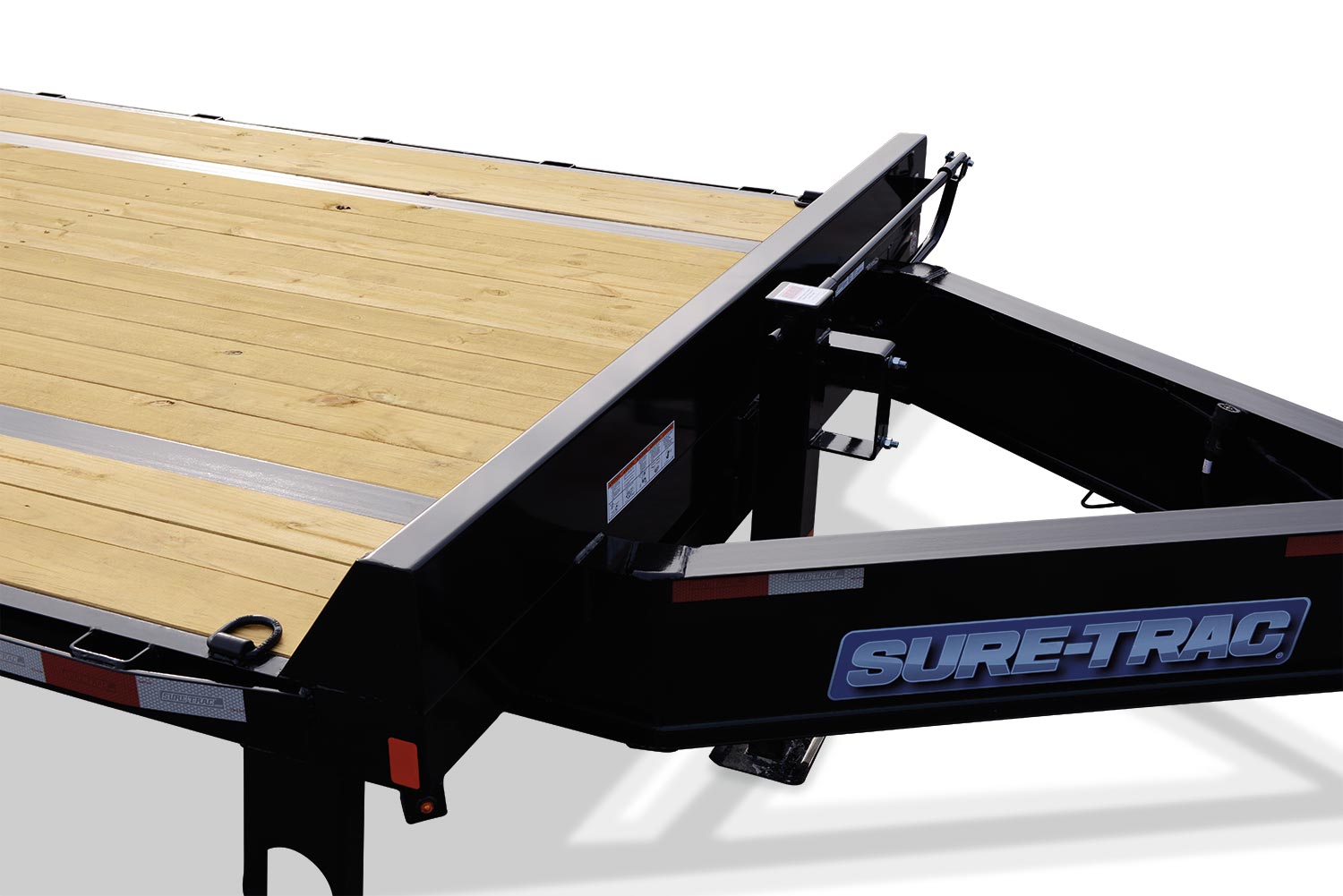

zoomed in front view of the Heavy Duty Low Profile Beavertail Deckover Trailer

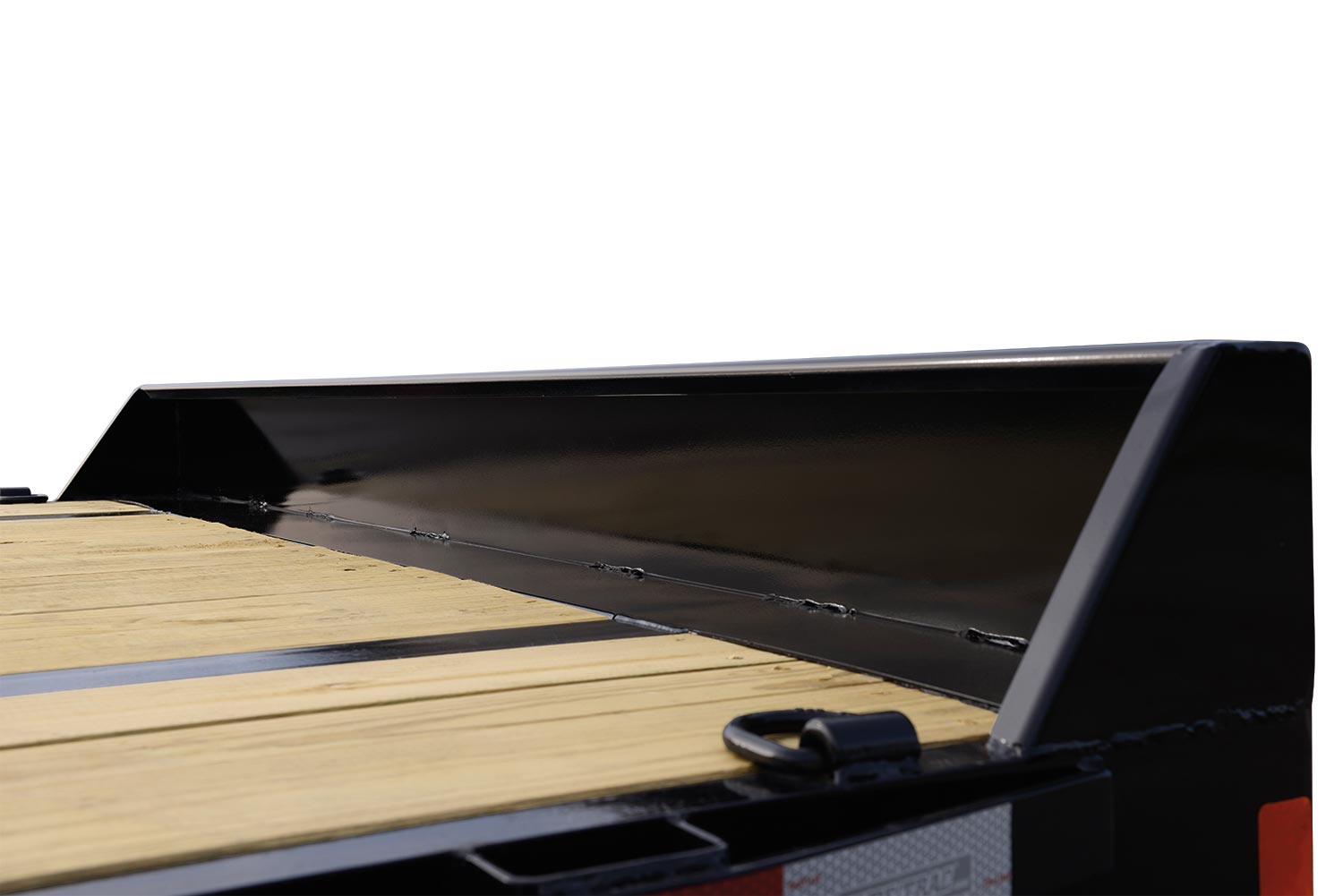

close up rear view of the Heavy Duty Low Profile Beavertail Deckover Trailer

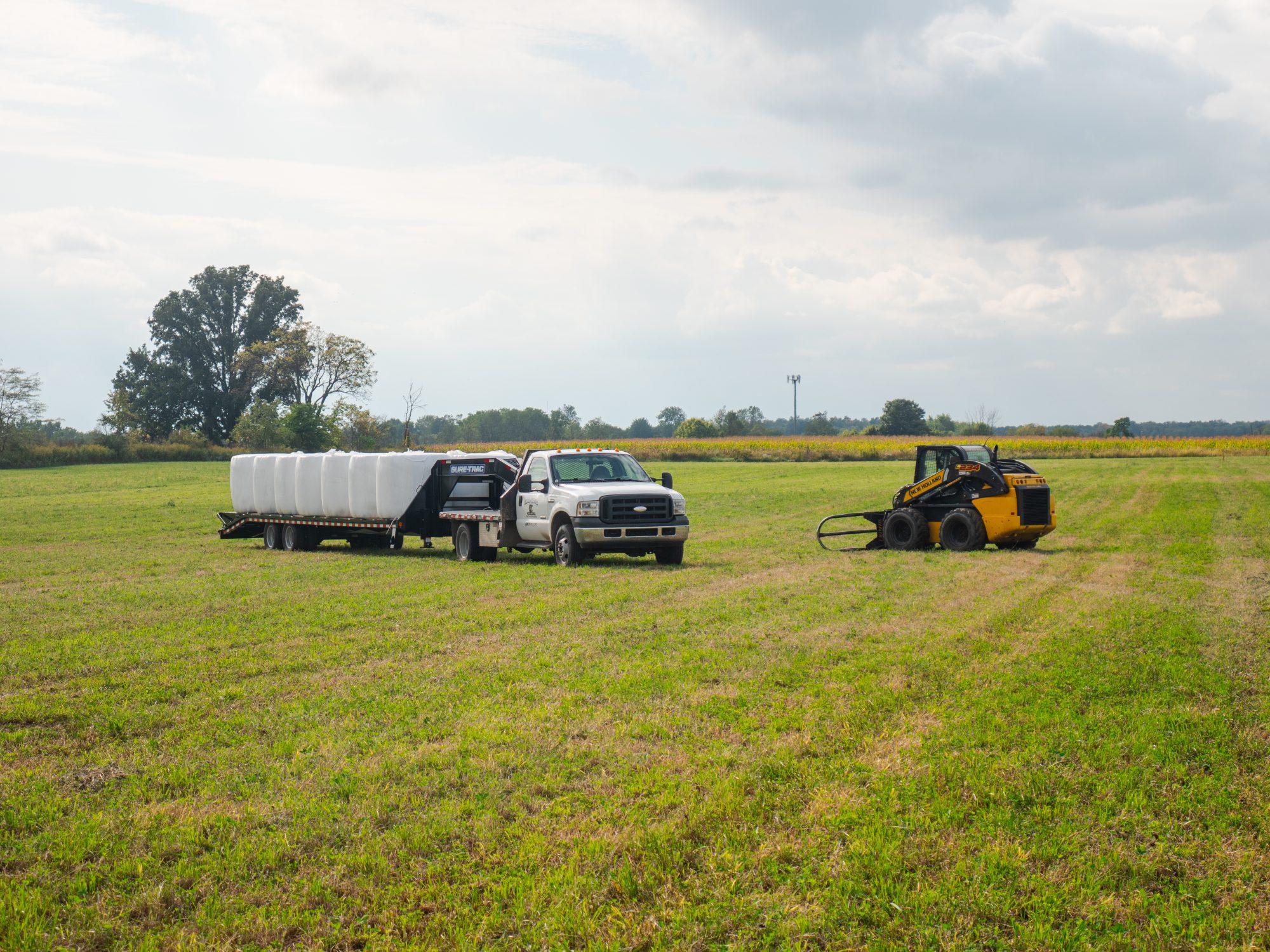

Trailers | Featured 2019_HDLOWPROFILE_DECKOVER-55

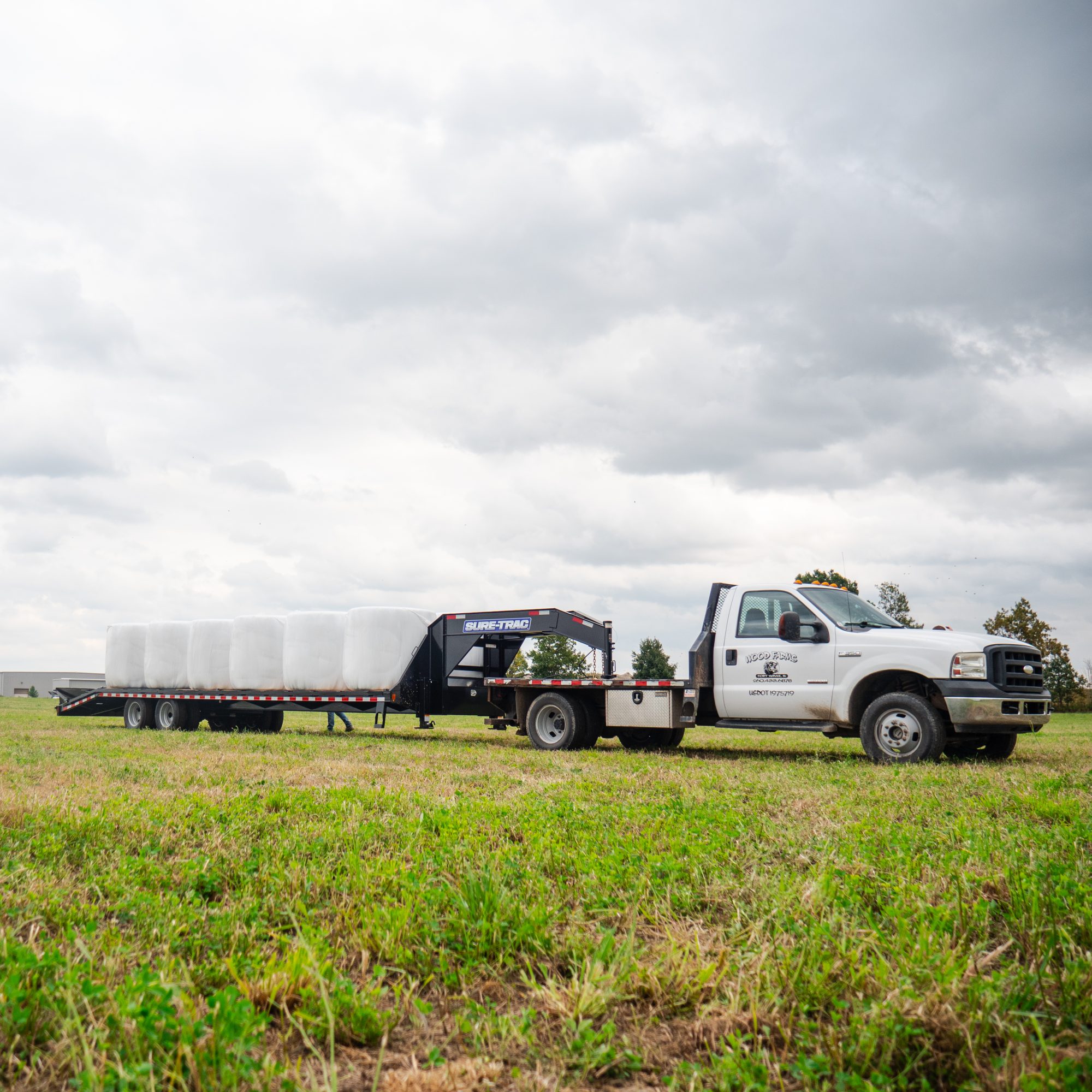

Trailers | Featured 2019_HDLOWPROFILE_DECKOVER-55
Trailers | Featured 2019_HDLOWPROFILE_DECKOVER-55

Model Color Options:

Selected Color

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose a Sure-Trac Heavy Duty Low Profile Beavertail Deckover Trailer?

Built for durability, the Sure-Trac Low Profile Deckover is constructed with a robust steel frame and treated wood decking, ensuring it can handle even the heaviest loads. Whether you’re a contractor transporting construction tools or an outdoor enthusiast hauling ATVs, this trailer is designed to withstand rigorous use.

Safety is at the forefront with this trailer, featuring multiple tie-down points that allow you to secure your load effectively. The bright LED lighting system ensures visibility in all conditions, keeping you safe while on the road.

Versatile and user-friendly, this trailer is perfect for a wide range of applications, including landscaping, construction, and recreational vehicle transport. Its low profile design not only facilitates easier loading but also enhances aerodynamics during towing, improving fuel efficiency.

With the Sure-Trac Heavy Duty Low Profile Beavertail Deckover Trailer, you’re choosing a reliable partner that enhances your hauling capabilities. Invest in quality and performance—make your transport tasks simpler and more efficient with Sure-Trac!

Models

8.5 x 20

HDLP Deckover Flatbed 15K
15000 lbs
Model #
ST-HDOF10220-150
GVWR (lbs)
15000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3900 lbs

8.5 x 20

Gooseneck HDLP Deckover Flatbed GN 15K
15000 lbs
Model #
ST-HDOF10220-150G
GVWR (lbs)
15000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4190 lbs

8.5 x 20

HDLP Deckover Flatbed 17.6K
17600 lbs
Model #
ST-HDOF10220-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
3940 lbs

8.5 x 20

Gooseneck HDLP Deckover Flatbed GN 17.6K
17600 lbs
Model #
ST-HDOF10220-176G
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4230 lbs

8.5 x 20

HDLP Deckover Flatbed 22.5K
22500 lbs
Model #
ST-HDOF10220-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
4150 lbs

8.5 x 20

Gooseneck HDLP Deckover Flatbed GN 22.5K
22500 lbs
Model #
ST-HDOF10220-225G
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
4410 lbs

8.5 x 20

HDLP Deckover Flatbed 25.9K
25900 lbs
Model #
ST-HDOF10220-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
4500 lbs

8.5 x 20

Gooseneck HDLP Deckover Flatbed GN 25.9K
25900 lbs
Model #
ST-HDOF10220-259G
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
4760 lbs

8.5 x 20

Gooseneck HDLP Deckover Flatbed GN 30K
30000 lbs
Model #
ST-HDOF10220-300G
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
16000 lbs/axle
Curb Weight
5180 lbs

8.5 x 20

HDLP Deckover Flatbed 32K
32000 lbs
Model #
ST-HDOF10220-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
16000 lbs/axle
Curb Weight
5000 lbs

8.5 x 22

HDLP Deckover Flatbed 15K
15000 lbs
Model #
ST-HDOF10222-150
GVWR (lbs)
15000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5500 lbs

8.5 x 22

Gooseneck HDLP Deckover Flatbed GN 15K
15000 lbs
Model #
ST-HDOF10222-150G
GVWR (lbs)
15000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4390 lbs

8.5 x 22

HDLP Deckover Flatbed 17.6K
17600 lbs
Model #
ST-HDOF10222-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4340 lbs

8.5 x 22

HDLP Deckover Flatbed 22.5K
22500 lbs
Model #
ST-HDOF10222-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
4710 lbs

8.5 x 25

HDLP Deckover 15K
15000 lbs
Model #
ST-HDO10225-150
GVWR (lbs)
15000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4640 lbs

8.5 x 25

HDLP Deckover Flatbed 15K
15000 lbs
Model #
ST-HDOF10225-150
GVWR (lbs)
15000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5200 lbs

8.5 x 25

Gooseneck HDLP Deckover Flatbed GN 15K
15000 lbs
Model #
ST-HDOF10225-150G
GVWR (lbs)
15000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5200 lbs

8.5 x 25

Gooseneck HDLP Deckover GN 15K
15000 lbs
Model #
ST-HDO10225-150G
GVWR (lbs)
15000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4930 lbs

8.5 x 25

HDLP Deckover 17.6K
17600 lbs
Model #
ST-HDO10225-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4740 lbs

8.5 x 25

HDLP Deckover Flatbed 17.6K
17600 lbs
Model #
ST-HDOF10225-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4920 lbs

8.5 x 25

Gooseneck HDLP Deckover GN 17.6K
17600 lbs
Model #
ST-HDO10225-176G
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5030 lbs

8.5 x 25

HDLP Deckover 22.5K
22500 lbs
Model #
ST-HDO10225-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5540 lbs

8.5 x 25

HDLP Deckover Flatbed 22.5K
22500 lbs
Model #
ST-HDOF10225-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5550 lbs

8.5 x 25

Gooseneck HDLP Deckover GN 22.5K
22500 lbs
Model #
ST-HDO10225-225G
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5800 lbs

8.5 x 25

HDLP Deckover 25.9K
25900 lbs
Model #
ST-HDO10225-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
5840 lbs

8.5 x 25

Gooseneck HDLP Deckover GN 25.9K
25900 lbs
Model #
ST-HDO10225-259G
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
6100 lbs

8.5 x 25

Gooseneck HDLP Deckover GN 30K
30000 lbs
Model #
ST-HDO10225-300G
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
16000 lbs/axle
Curb Weight
6470 lbs

8.5 x 25

HDLP Deckover 32K
32000 lbs
Model #
ST-HDO10225-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
15000 lbs/axle
Curb Weight
6210 lbs

8.5 x 27

HDLP Deckover 15K
15000 lbs
Model #
ST-HDO10227-150
GVWR (lbs)
15000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4760 lbs

8.5 x 27

Gooseneck HDLP Deckover GN 15K
15000 lbs
Model #
ST-HDO10227-150G
GVWR (lbs)
15000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4760 lbs

8.5 x 27

HDLP Deckover 17.6K
17600 lbs
Model #
ST-HDO10227-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5110 lbs

8.5 x 27

Gooseneck HDLP Deckover GN 17.6K
17600 lbs
Model #
ST-HDO10227-176G
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5110 lbs

8.5 x 27

HDLP Deckover 22.5K
22500 lbs
Model #
ST-HDO10227-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
6010 lbs

8.5 x 27

Gooseneck HDLP Deckover GN 22.5K
22500 lbs
Model #
ST-HDO10227-225G
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
6010 lbs

8.5 x 27

HDLP Deckover 25.9K
25900 lbs
Model #
ST-HDO10227-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
6820 lbs

8.5 x 27

Gooseneck HDLP Deckover GN 25.9K
25900 lbs
Model #
ST-HDO10227-259G
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
6820 lbs

8.5 x 30

HDLP Deckover 15K
15000 lbs
Model #
ST-HDO10230-150
GVWR (lbs)
15000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5240 lbs

8.5 x 30

Gooseneck HDLP Deckover GN 15K
15000 lbs
Model #
ST-HDO10230-150G
GVWR (lbs)
15000 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5530 lbs

8.5 x 30

HDLP Deckover 17.6K
17600 lbs
Model #
ST-HDO10230-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5620 lbs

8.5 x 30

Gooseneck HDLP Deckover GN 17.6K
17600 lbs
Model #
ST-HDO10230-176G
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5910 lbs

8.5 x 30

HDLP Deckover 22.5K
22500 lbs
Model #
ST-HDO10230-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
6280 lbs

8.5 x 30

Gooseneck HDLP Deckover GN 22.5K
22500 lbs
Model #
ST-HDO10230-225G
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
7100 lbs

8.5 x 30

HDLP Deckover 25.9K
25900 lbs
Model #
ST-HDO10230-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
6380 lbs

8.5 x 30

HDLP Deckover Flatbed 25.9K
25900 lbs
Model #
ST-HDOF10230-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
7200 lbs

8.5 x 30

Gooseneck HDLP Deckover Flatbed GN 25.9K
25900 lbs
Model #
ST-HDOF10230-259G
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
6280 lbs

8.5 x 30

Gooseneck HDLP Deckover GN 25.9K
25900 lbs
Model #
ST-HDO10230-259G
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
6380 lbs

8.5 x 30

Gooseneck HDLP Deckover GN 30K
30000 lbs
Model #
ST-HDO10230-300G
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
16000 lbs/axle
Curb Weight
8840 lbs

8.5 x 30

HDLP Deckover 32K
32000 lbs
Model #
ST-HDO10230-320
GVWR (lbs)
32000 lbs
GAWR (lbs/axle)
16000 lbs/axle
Curb Weight
8840 lbs

8.5 x 32

HDLP Deckover 22.5K
22500 lbs
Model #
ST-HDO10232-225
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
6640 lbs

8.5 x 32

Gooseneck HDLP Deckover GN 25.9K
25900 lbs
Model #
ST-HDO10232-259G
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
6640 lbs

8.5 x 35

Gooseneck HDLP Deckover GN 22.5K
22500 lbs
Model #
ST-HDO10235-225G
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
8570 lbs

8.5 x 35

HDLP Deckover 25.9K
25900 lbs
Model #
ST-HDO10235-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
8160 lbs

8.5 x 35

Gooseneck HDLP Deckover GN 25.9K
25900 lbs
Model #
ST-HDO10235-259G
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
8360 lbs

8.5 x 35

Gooseneck HDLP Deckover GN 30K
30000 lbs
Model #
ST-HDO10235-300G
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
16000 lbs/axle
Curb Weight
9220 lbs

8.5 x 40

Gooseneck HDLP Deckover GN 22.5K
22500 lbs
Model #
ST-HDO10240-225G
GVWR (lbs)
22500 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
9300 lbs

8.5 x 40

Gooseneck HDLP Deckover GN 25.9K
25900 lbs
Model #
ST-HDO10240-259G
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
9300 lbs

8.5 x 40

Gooseneck HDLP Deckover GN 30K
30000 lbs
Model #
ST-HDO10240-300G
GVWR (lbs)
30000 lbs
GAWR (lbs/axle)
16000 lbs/axle
Curb Weight
9500 lbs

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.

Configure & Quote

Please let us know more about the trailer you’re looking for by completing the form below. We will forward your request to your nearest Sure-Trac dealer, who will reach out to you with a quote.

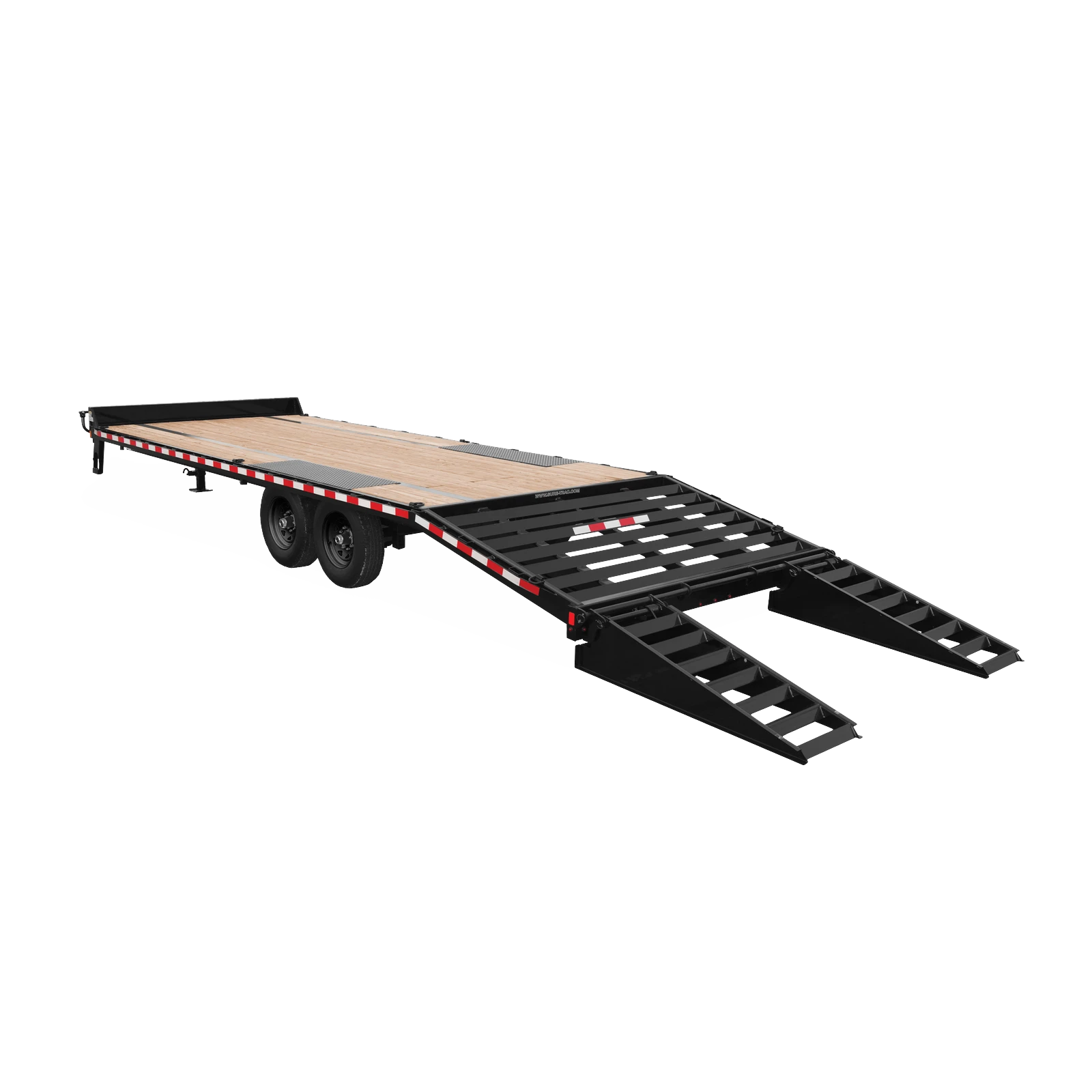

Heavy Duty Low Profile Beavertail Deckover Trailer

Please let us know more about the trailer you’re looking for by completing the form below. We will forward your request to your nearest Sure-Trac dealer, who will reach out to you with a quote.

"*" indicates required fields

Select a Width / Length*
Select GVWR (lbs.)*
Select GVWR (lbs.)*
This field is hidden when viewing the form
Variant Mapping
Name*
Address*
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
Communication Opt-In
