Aluminum Trailers

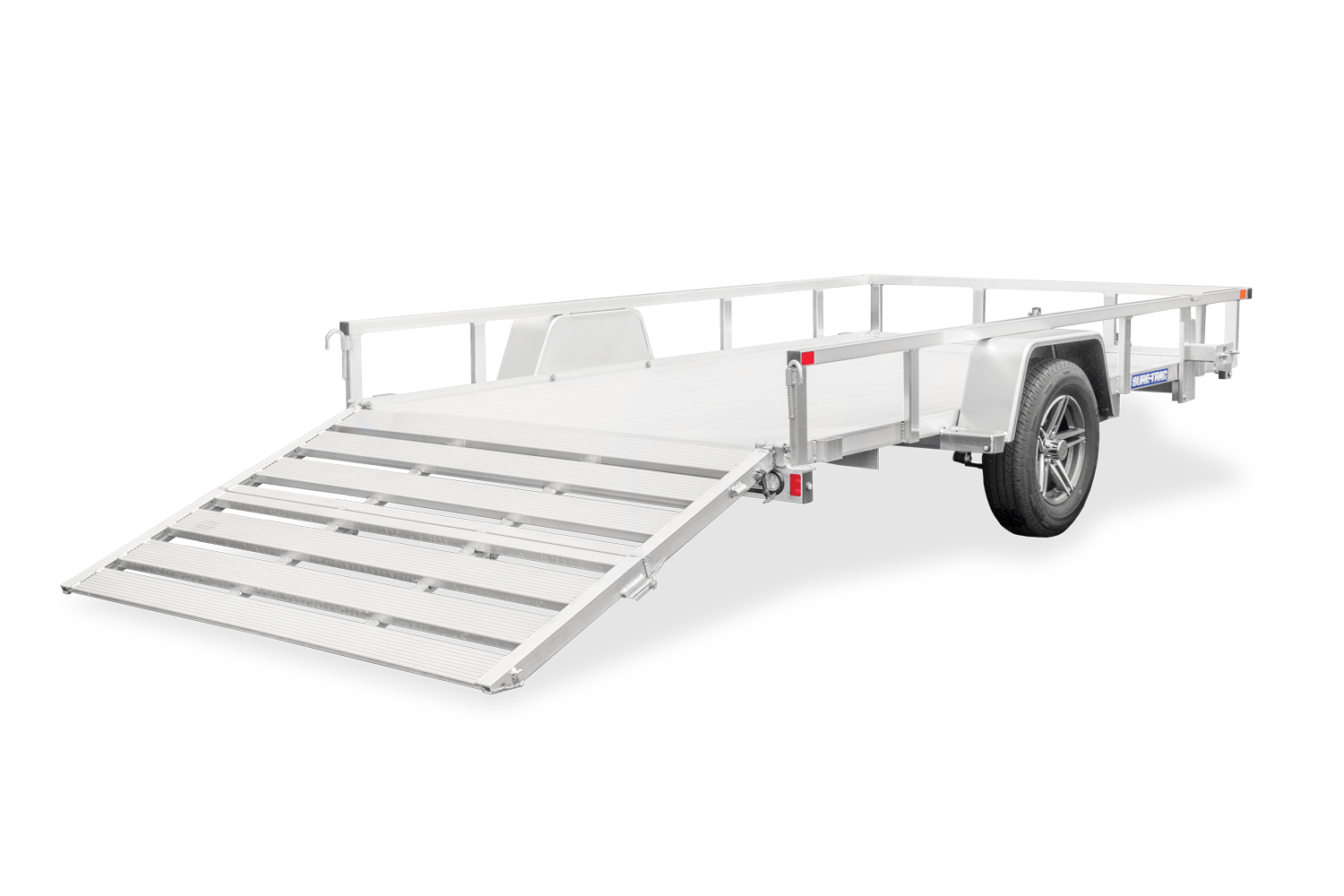

Aluminum Tube Top Utility

The Sure-Trac Aluminum Tube Top trailer has been designed and crafted with the same “SMART” features of our industry leading steel utility trailer.  These units include the standard features you have been accustomed to, such as the tube top rail, tube uprights, stake pockets, spare tire mount, and enclosed wiring.  The bi-fold aluminum gate carries a 2,200 lb. load rating, and the swivel jack makes for quick hitching or unhitching from your truck.  These units are available in multiple widths, lengths, and in single and tandem axle configurations.

Features

  • 3" x 2" x 3/16" Aluminum Angle Frame
  • 4" x 2" Aluminum Tube Tongue
  • 2" x 2" Tube Top Rail
  • Tube Uprights
  • 2" A-Frame Coupler
  • Safety Chains
  • 4-Way Molded Plug
  • Enclosed Wiring
  • Swivel Jack with Caster Wheel
  • 54" Bi-Fold Aluminum Ramp Gate
  • Aluminum Fenders
  • Easy Lube Hubs
  • 15" Radial Tires
  • Aluminum Wheels
  • Wheel Assembly, 205 75R15 LRC
  • Aluminum Extruded Flooring
  • Stake Pockets
  • Spare Tire Carrier
  • All LED Lights

Specifications

  • 5' x 8' 3K
  • 5' x 10' 3K
  • 6' x 10' 3K
  • 6' x 12' 3K
  • 7' x 12' 3K
  • 7' x 14' 3K (SA)
  • 7' x 14' 7K (TA)
  • 7' x 16' 7K
  • GVWR (lbs)
  • 5' x 8' 3K 2990
  • 5' x 10' 3K 2990
  • 6' x 10' 3K 2990
  • 6' x 12' 3K 2990
  • 7' x 12' 3K 2990
  • 7' x 14' 3K (SA) 2990
  • 7' x 14' 7K (TA) 7000
  • 7' x 16' 7K 7000
  • GAWR (lbs/axle)
  • 5' x 8' 3K 3500
  • 5' x 10' 3K 3500
  • 6' x 10' 3K 3500
  • 6' x 12' 3K 3500
  • 7' x 12' 3K 3500
  • 7' x 14' 3K (SA) 3500
  • 7' x 14' 7K (TA) 3500
  • 7' x 16' 7K 3500
  • Curb Weight
  • 5' x 8' 3K 505
  • 5' x 10' 3K 510
  • 6' x 10' 3K 580
  • 6' x 12' 3K 625
  • 7' x 12' 3K 675
  • 7' x 14' 3K (SA) 595
  • 7' x 14' 7K (TA) 1130
  • 7' x 16' 7K 1140
  • Payload
  • 5' x 8' 3K 2485
  • 5' x 10' 3K 2480
  • 6' x 10' 3K 2410
  • 6' x 12' 3K 2365
  • 7' x 12' 3K 2315
  • 7' x 14' 3K (SA) 2295
  • 7' x 14' 7K (TA) 5870
  • 7' x 16' 7K 5860
