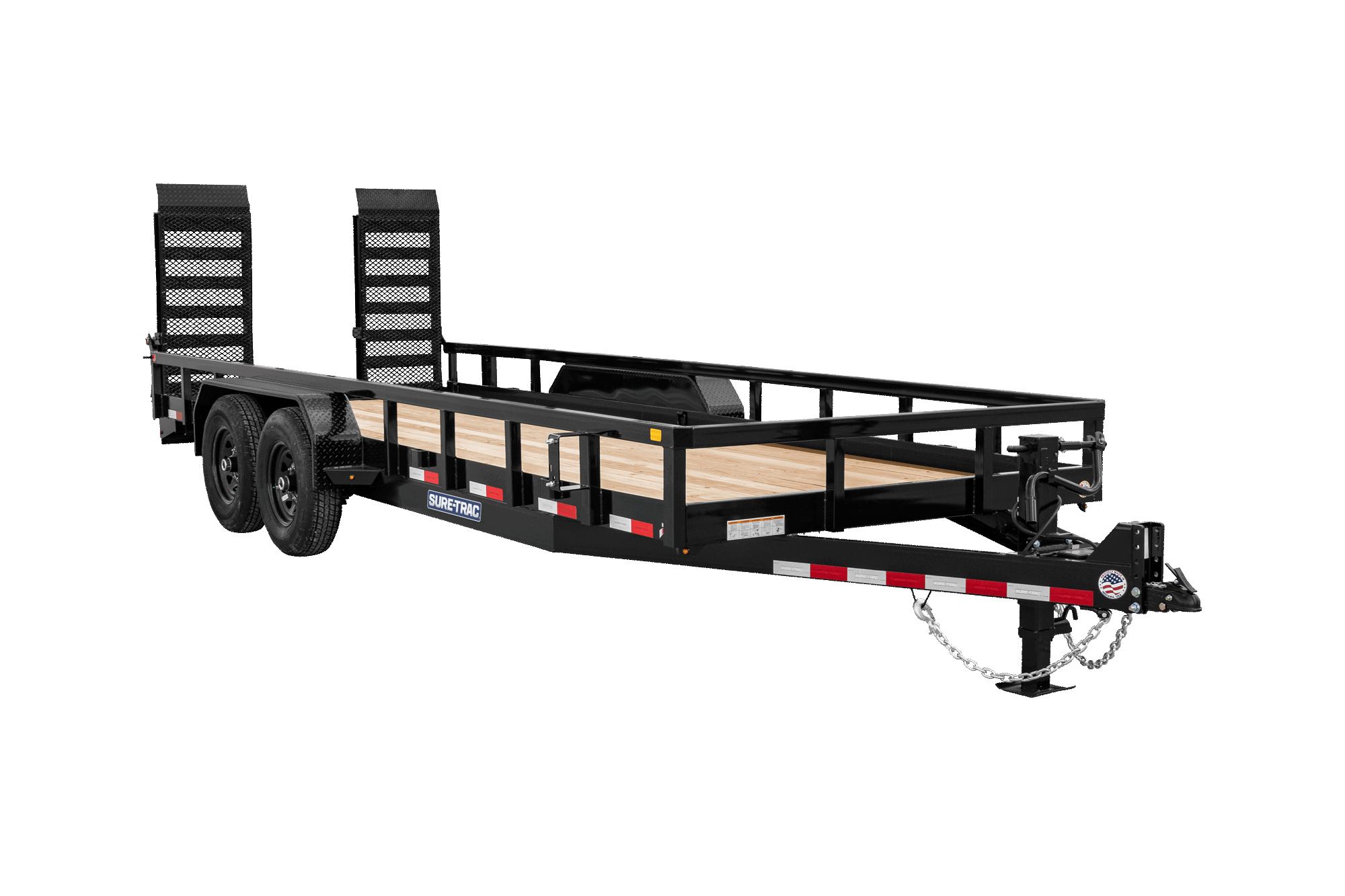

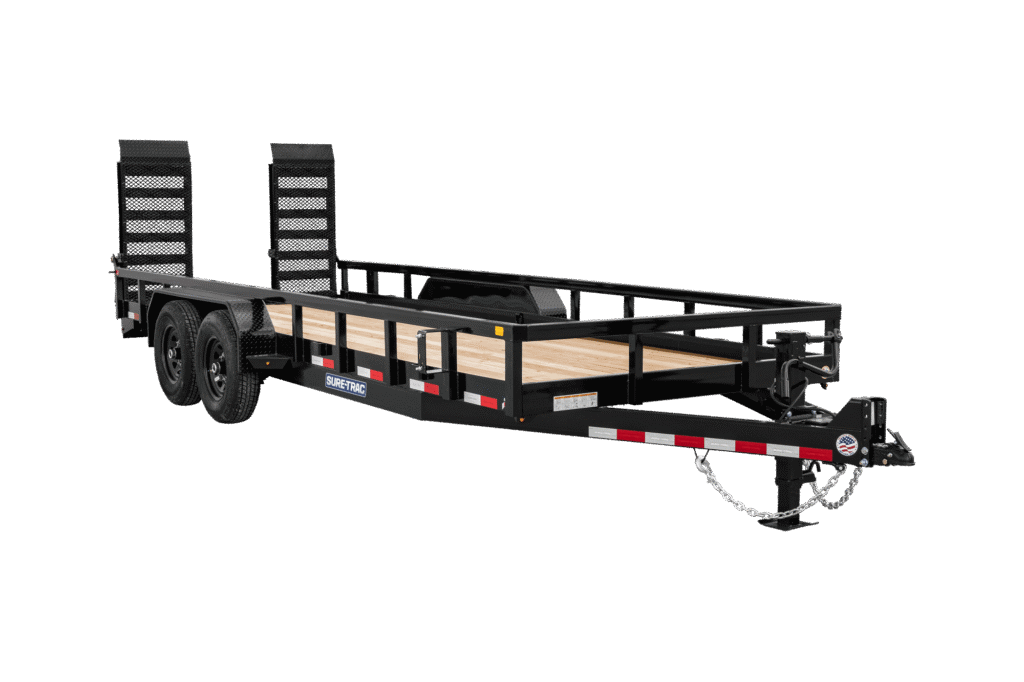

14K Tube Top Utility Trailer

The Sure-Trac® 14K Tube Top Utility Trailer is a professional-grade, heavy-duty utility trailer designed to do the work of two trailers. Built for landscapers and contractors who need to haul a wide range of equipment, this versatile design combines the open-deck functionality of a landscape trailer with the 14,000 lb. GVWR typically reserved for equipment trailers. When you need to drop off mowers at one site and then haul a skid steer to another, this hybrid solution eliminates the need to switch trailers throughout the day. It's the smart choice for professionals whose work demands a flatbed utility trailer that delivers high-capacity performance without compromise.

Learn More → Configure & Quote

Download Spec Sheet PDF

Find a Sure-Trac Dealer

Bed Width:

Bed Length:

16' - 24'

GVWR:

14,000 lbs

Load Capacity:

9,740 - 10,180 lbs

Key Benefits

True Utility and Equipment Hybrid

This trailer is a true hybrid that allows you to replace two specialized trailers with one versatile unit.

14,000 lb. GVWR for Heavy Machinery

Carry up to 10,000 lbs. of payload, providing enough capacity for most excavators and skid steers.

Low Deck Height for Easy Loading

The low deck height creates a reduced loading angle, making it safer to load equipment with minimal ground clearance.

Reinforced Ramp System

Features heavy-duty, mesh-covered ramps that are significantly beefier than standard utility ramps to handle heavier equipment weights.

Commercial-Grade Durability

Constructed with a 6″ x 4″ 5/16″ angle frame and a 6″ channel tongue to withstand the rigors of daily commercial use.

Why Choose a Sure-Trac 14K Tube Top Utility Trailer?

Overview

The Sure-Trac 14k Tube Top Utility Trailer is designed for those who know time is money. By combining the accessibility of a utility trailer with the rugged strength of an equipment trailer, this model allows you to hook up once and work all day. For contractors searching for heavy-duty utility trailers for sale, this model offers unmatched versatility by hauling everything from a fleet of mowers to a small backhoe.

Frame and Construction

This trailer is built on a heavy-duty foundation, featuring a reinforced 5/16-inch thick steel angle frame and a high-strength 6-inch channel tongue designed to handle maximum loads with ease. The signature "Tube Top" rail provides superior structural rigidity compared to standard formed-steel rails. For a smoother ride and decreased long-term maintenance, the trailer also features slipper axle suspension. To protect your vehicle, the 12k heavy-duty jack is set back to ensure plenty of clearance for your tailgate.

Exterior Features

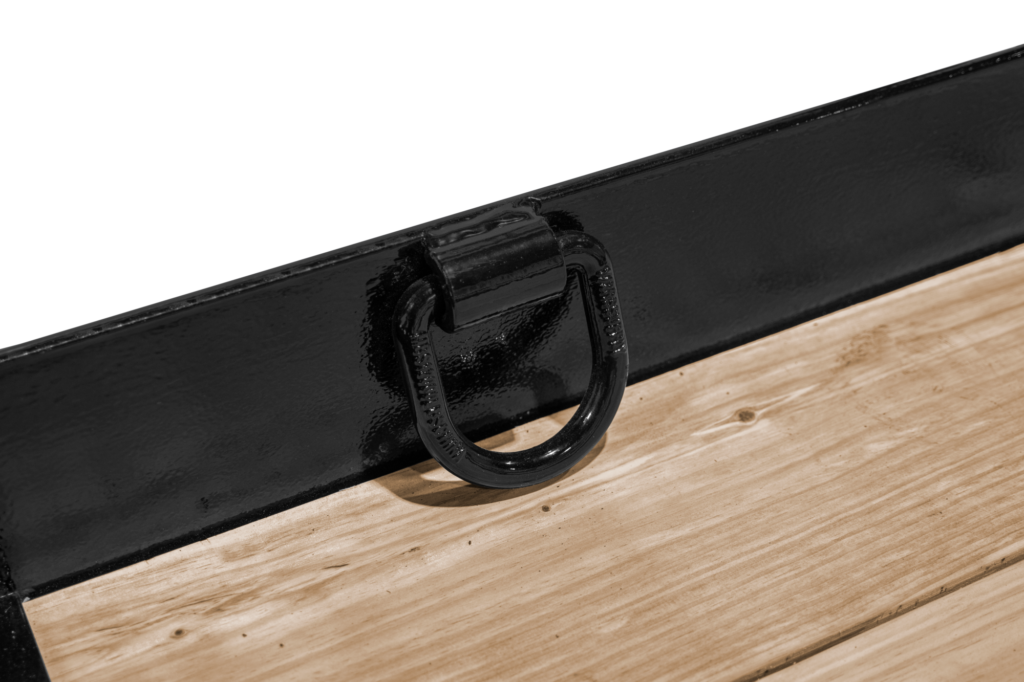

This flatbed utility trailer is engineered for maximum security and ease of use. It comes equipped with six 1/2" D-rings and six heavy-duty stake pockets, ensuring you can secure any type of equipment or cargo. The 55" tongue improves maneuverability in tight jobsites, while the fully sealed wire harness protects your electrical system from the elements. This model is also ready to accommodate a lockable drop-in toolbox to keep your gear secure on-site.

Loading Features

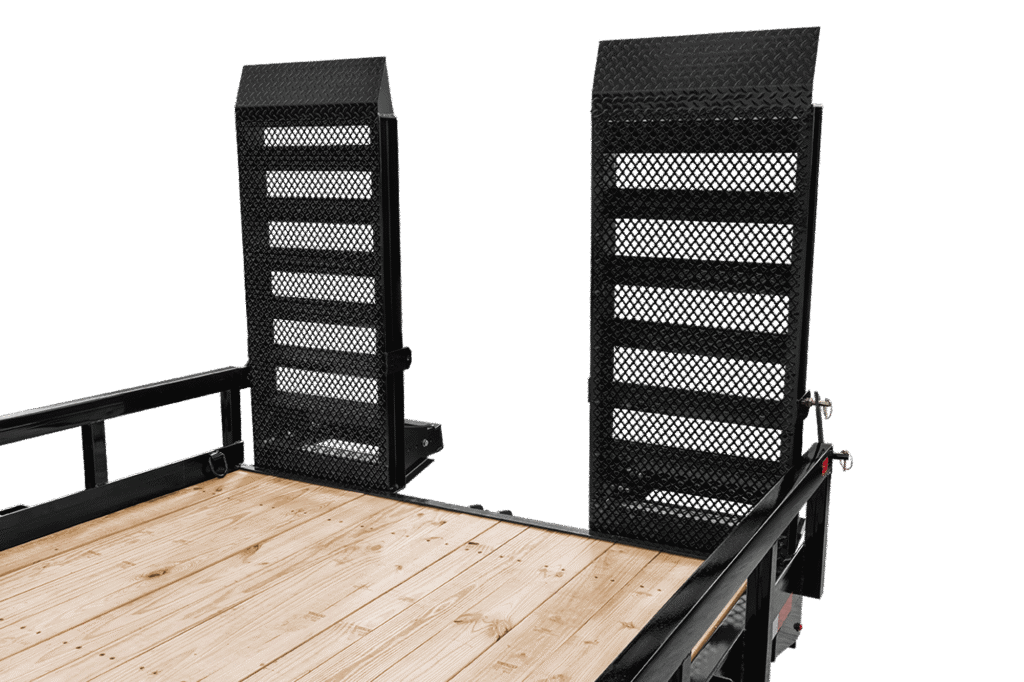

The loading system is specifically designed for professionals hauling diverse machinery. The heavy-duty ramps feature a reverse knife-edge and a reduced gap deck to provide a smooth transition for equipment with small wheels. For added safety, adjustable support legs provide stability during the loading process. The ramps are also designed for easy maintenance, utilizing bushings in the hinges for a smooth, long-lasting pivot.

Color Options

Model #

ST-UTT8224-140

GVWR:

14,000 lbs

GAWR:

7,000 lbs/axle

Curb Weight:

4,260 lbs

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
